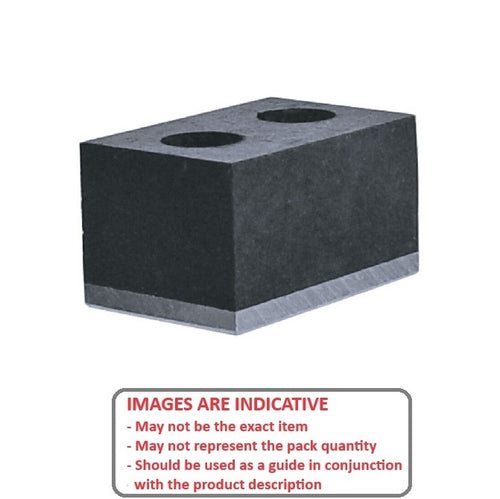

FRB-106RS - Datasheet
MBA
Category Information
Bumpers - RectangleRectangle Bumpers. This is the main category in this series

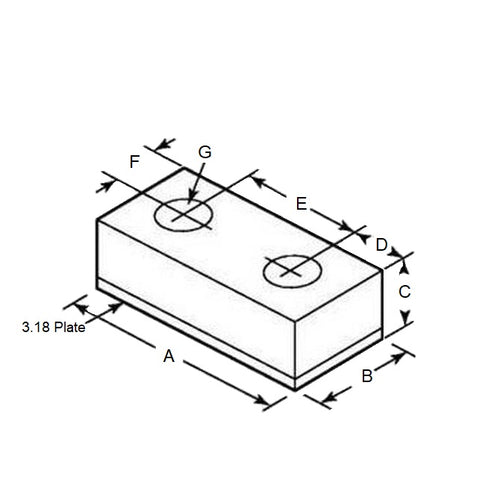

Product Data
- Length (A)
:
76.200
mm
(Equiv. 3 in.) - Width (B)
38.100
mm
(Equiv. 1.5 in.) - Height (C)
25.400
mm
(Equiv. 1 in.) - Length Centre Hole (D) 12.700 mm
- Distance Between Holes (E) 50.800 mm
- Width Centre Hole (F) 19.050 mm
- Hole Size (G) 7.925 mm
- No. of Holes 2
- Durometer 80A
- Material Neoprene Rubber
