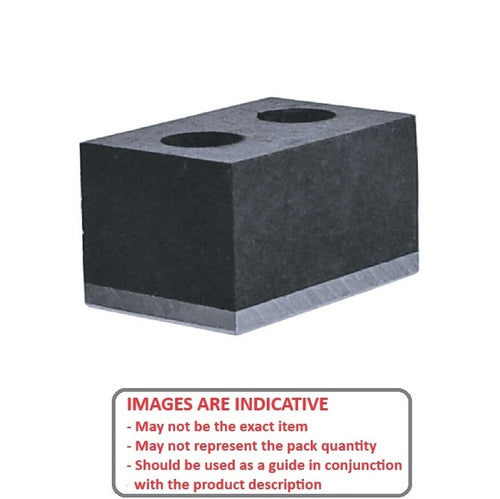

FRB-104RS - Datasheet

MBA

Product Data

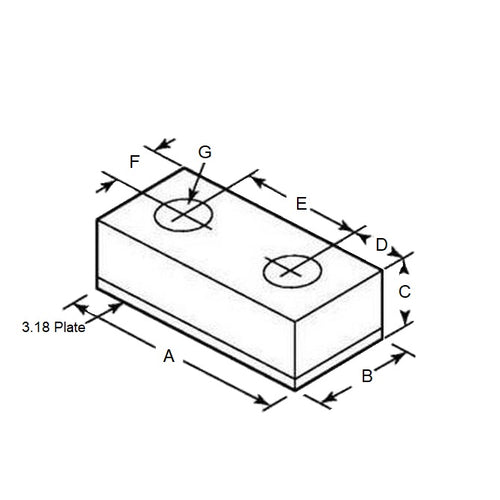

• Length (A) : 76.200 mm
  (Equiv. 3 in.)
• Width (B) 25.400 mm
  (Equiv. 1 in.)
• Height (C) 44.450 mm
  (Equiv. 1.75 in.)
• Length Centre Hole (D) 15.875 mm
• Distance Between Holes (E) 44.450 mm
• Width Centre Hole (F) 12.700 mm
• Hole Size (G) 9.525 mm
• No. of Holes 2
• Durometer 80A
• Material Neoprene Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
