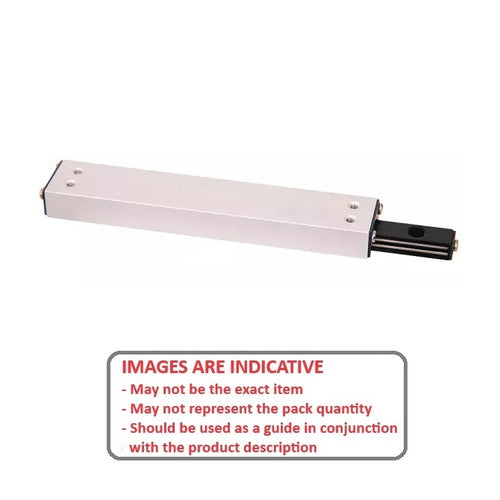

Precision Ball Slide Assembly Linear. These precision ball slides have a typical coefficient of friction of 0.003 and provide straight line accuracy of 0.0005mm per mm of travel.

• At load capacity a life of 250 million mm of travel can be expected. The expected life at half load capacity is 2.5 billion mm.
• Factory preload adjustment prevents sideplay and backlash. Lightweight aluminium carriage and base with high load capacity.
• Four tapped and threaded carriage holes and counterbored base holes simplify installation and component mounting.
• Long life, self cleaning ball bearing needs no lubrication.
• Positional repeatability 0.005mm. Clear anodised finish.
