CCI-07500-CZ - Datasheet
MBA
Category Information

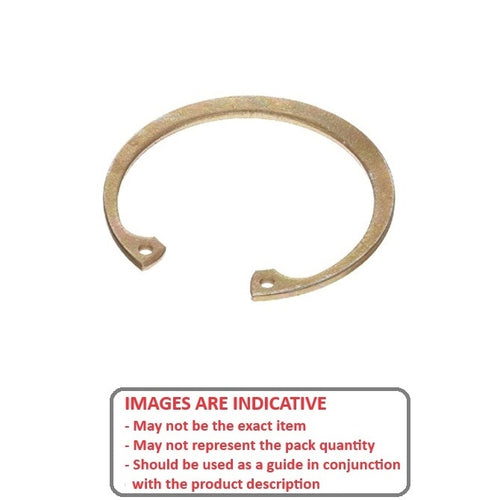

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
75.00
mm
(Equiv. 2.953 in.) - Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.) - Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.07
(Equiv. 3.071 in.) - Approx. Loose Circlip OD (Dr) 79.50 mm + 1.10 / - 0.46
- Groove Width (W) 2.65 mm + 0.13 / - 0.00
- Clearance in Bore (C) 58.60 mm
- Clearance in Groove (C1) 62.40 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 4.50
- Standard DIN472
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-075-ZD
- Bossard BN-822-075-ZD
- Waldes D1300-075-ZD
- NoCor DHO-075-ZD
- Rotor Clip DHO-075-ZD
- Seeger J-075-ZD
- Seeger J75X2.5ZP
- D13000750ZD
- D1300075ZD
- D1300-0750ZD
- J075ZD
- DHO075ZD
- 472075ZD
- BN822075ZD
