B-080H-0075-0850-NFB - Datasheet

MBA

Category Information

Belts - Timing 8.000mm Pitch - HTD - 85mm Wide

85mm Wide HTD Timing 8.000mm Pitch Belts. HTD Series Metric Timing Belts

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

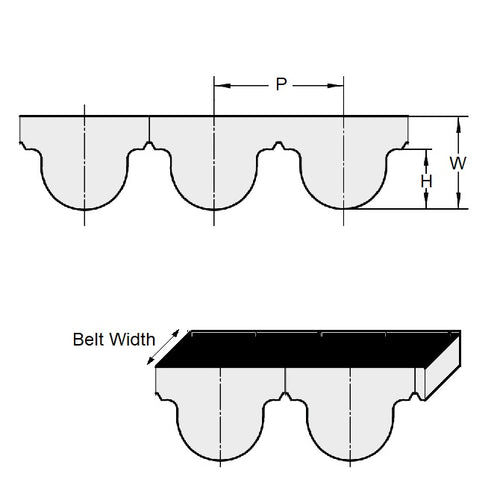

  • Tooth Height (H) - 3.38mm
  • Belt Height (W) - 5.6mm
  • Pitch (P) - 8mm

Product Data

  • Teeth : 75
  • Length 600 mm
    (Equiv. 23.622 in.)
  • Width 85.0 mm
    (Equiv. 3.346 in.)
  • Reinforcement Fibreglass
  • Appearance Black
  • Material Nylon Covered Neoprene with Fibreglass Cords
Country of Origin: DE

Product Compliance and Data

Additional Resources

View full details
Price & Order

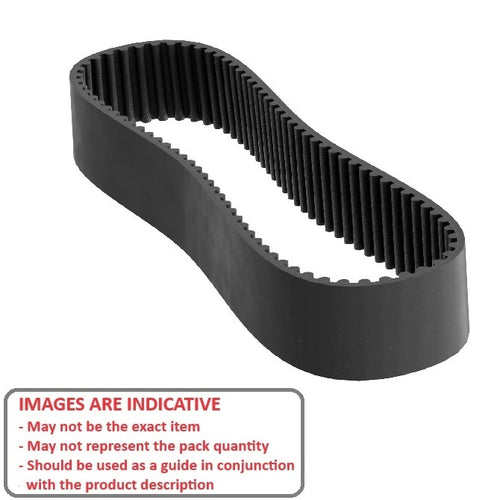

B-080H-0075-0850-NFBDiagramB-080H-0075-0850-NFBImage
