W0750-FP-095-0350-S4 - Datasheet
MBA
Category Information

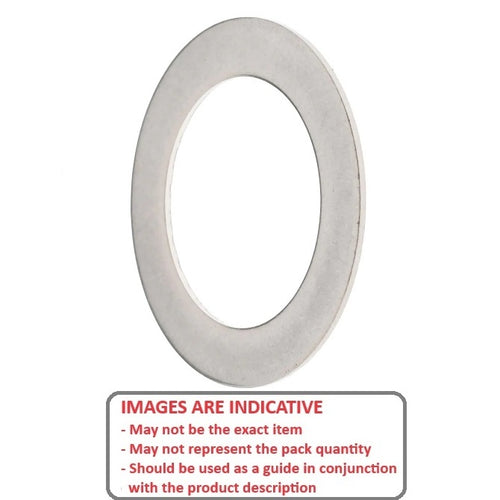

Spacers - Through Bore Round - Stainless SteelStainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel
- An expanded range may be available on special order. Please enquire.
Product Data

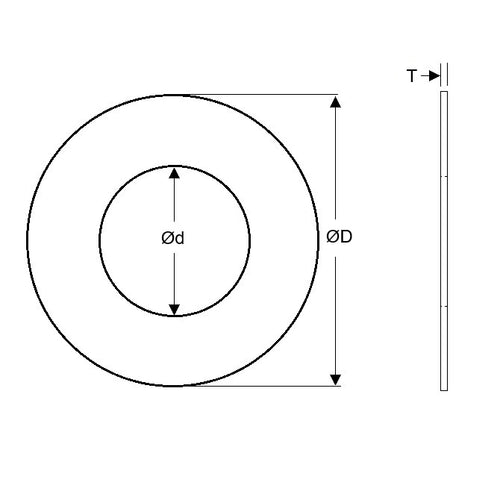

- ID (d)
:
75.000
mm
+ 0.100 / + 0.400
(Equiv. 2.953 in.) - OD (D)
95.000
mm
- 0.120 / - 0.470
(Equiv. 3.74 in.) - Length (L)
3.500
mm
+ 0.000 / - 0.080
(Equiv. 0.138 in.) - Precision
- 75.1
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- W0750FP095035CHSS
- W0750FP095035CH-SS
