TB-75 - Datasheet
MBA
Category Information

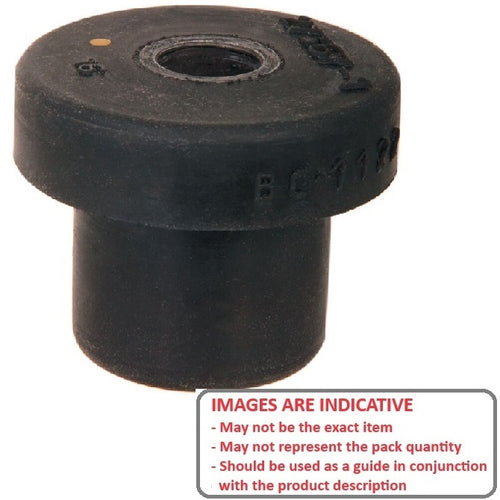

Mounts - Bonded - Tee Bush Centre BoltTee Bush Centre Bolt Bonded Mounts. Vibration isolation for mobile and static applications involving plate clamping
- An expanded range may be available on special order. Please enquire.
- Reduces structure borne noise and absorbs shock forces
- Low profile height
Product Data
- Max Static Load : 340 kg

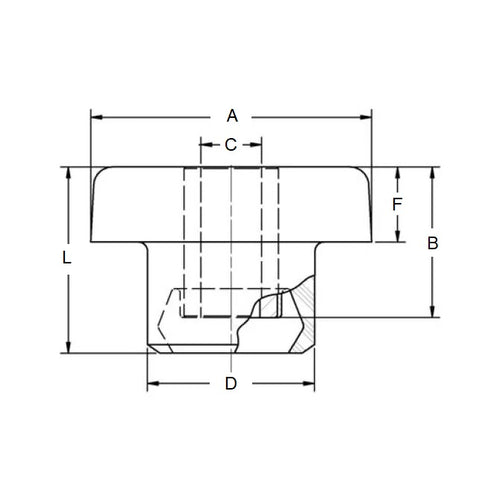

- Bolt Hole Diameter (C)
16.3
mm
(Equiv. 0.642 in.) - Flange Diameter (A)
75.5
mm
(Equiv. 2.972 in.) - Flange Width (F) 20.6 mm
- Shoulder Diameter (D) 50.3 mm
- Overall Length (B) 64.0 mm
- Material Neoprene Rubber and Steel
