CFB075-25-120M-R70 - Datasheet
MBA
Category Information

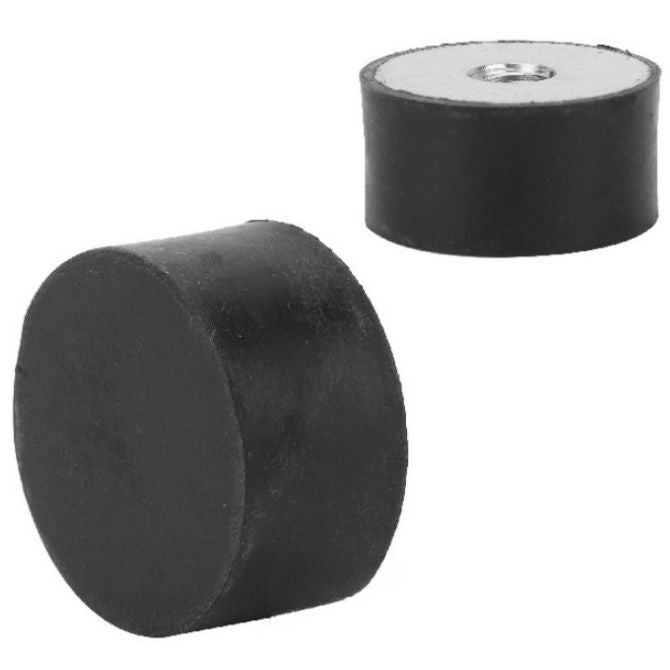

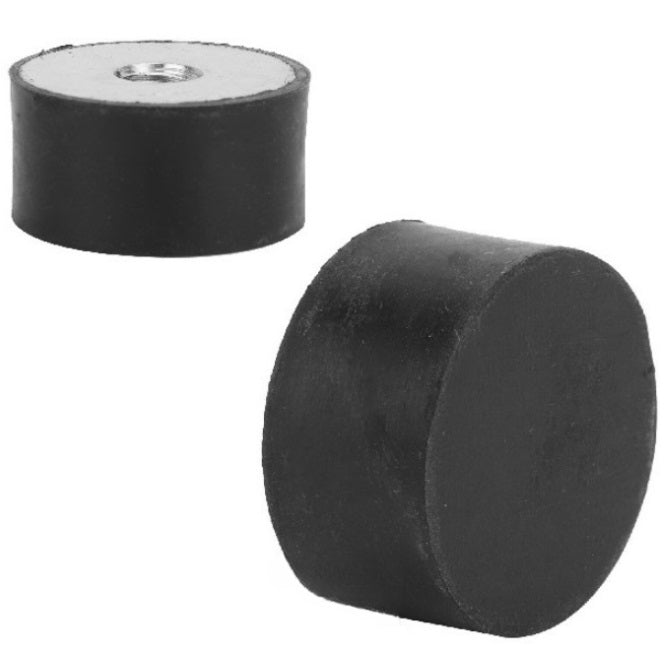

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
75.0
mm
(Equiv. 2.953 in.) - Body Height (H)
25.0
mm
(Equiv. 0.984 in.) - Thread Size M12x1.75
- Shore Hardness 70
- Compression Load 1880 Kg (lbs)
- Deflection 6.3 mm
- Configuration Female / Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7525FFB1270
- 7525FFB12-70
