COL-07461-108-29-CZ - Datasheet
MBA
Category Information

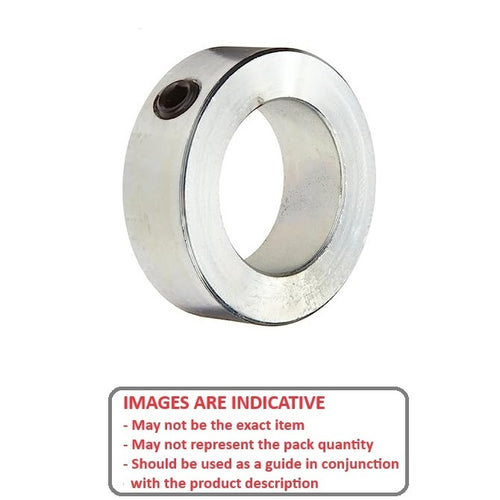

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
74.613
mm
(Equiv. 2.938 in.) - Outside Diameter (D)
107.95
mm
(Equiv. 4.25 in.) - Overall Width (S)
28.6
mm
(Equiv. 1.126 in.) - Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K48
- NoCor SC-2937-ZC
- SC2937ZC
