Miniature Bearings Australia
COL-07000-113-32-BO - Datasheet
MBA
Category Information

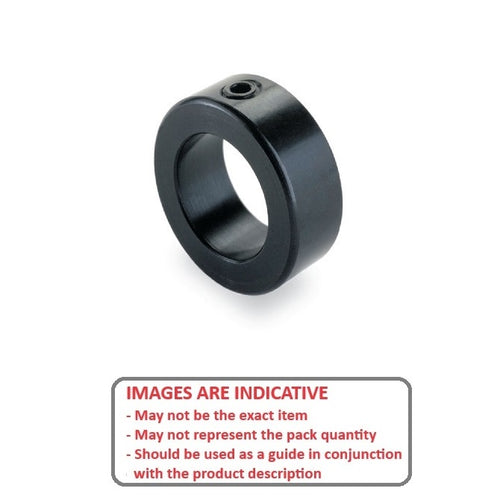

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
70.000
mm
+ 0.000 / + 0.046
(Equiv. 2.756 in.) - Outside Diameter (D)
113.00
mm
(Equiv. 4.449 in.) - Overall Width (S)
32.0
mm
(Equiv. 1.26 in.) - Material Steel - Black Oxide
Product Compliance and Data
Additional Resources
Cross References
- COL07000113113BO
