PC079-0508-6 - Datasheet
MBA
Category Information

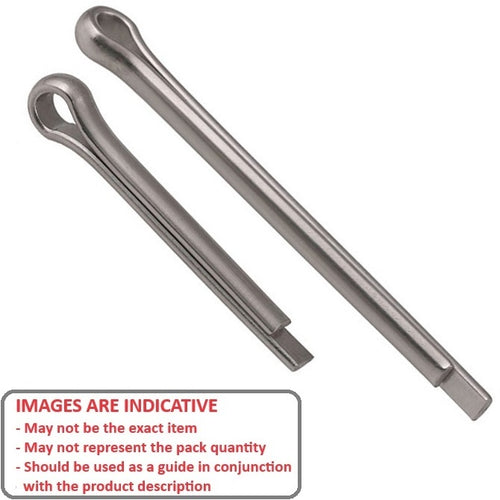

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter
:
7.9
mm
(Equiv. 0.311 in.) - Nom. Pin Length (L)
51.0
mm
(Equiv. 2.008 in.) - Nom. Pin Diameter (D)
7.1
mm
(Equiv. 0.28 in.) - Nom. Overall Length 61 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 98355A360
- NoCor CPS16-312-2000
- CPS163122000
