ES-0793-0392-10-M - Datasheet
MBA
Category Information

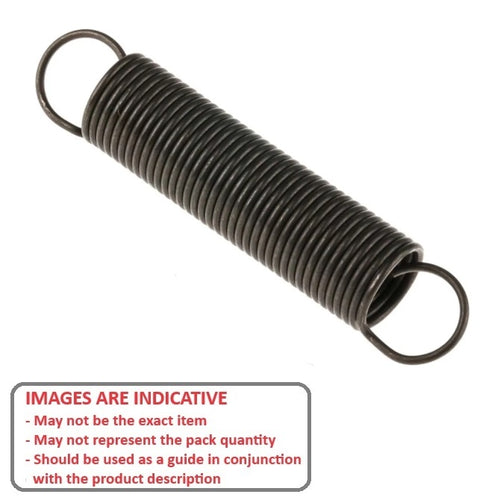

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

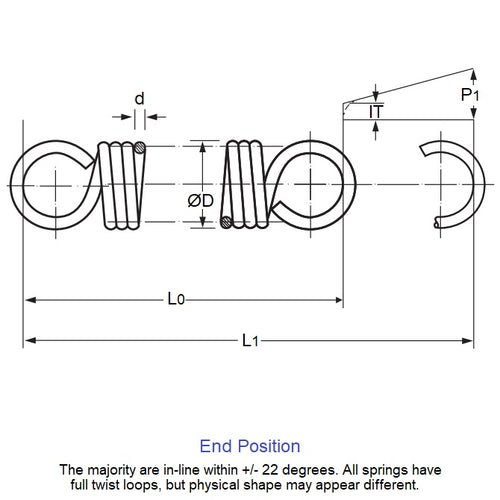

Product Data
- OD (D0)
:
7.90
mm
 (Equiv. 0.311 in.)
- Overall Length (L0)
39.2
mm
 (Equiv. 1.543 in.)
- Wire Diameter (d)
1.00
mm
 (Equiv. 0.039 in.)
- Initial Tension (IT) 1.1 N
- Body Length 25.400 mm
- End Type Closed - Full Loop
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- ASI JWE115
