CSC-079-024-04-M - Datasheet
MBA
Category Information

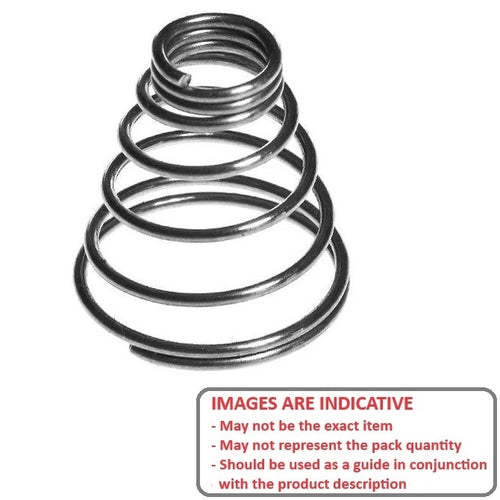

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data

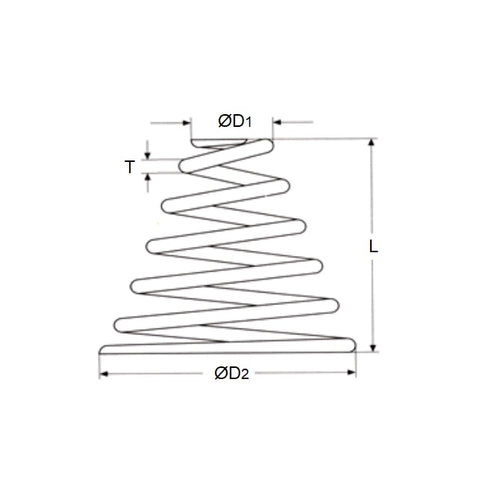

- Large End OD
:
7.90
mm
(Equiv. 0.311 in.) - Free Length
23.8
mm
(Equiv. 0.937 in.) - Small End OD
4.8
mm
(Equiv. 0.189 in.) - Inside Diameter Clearance 4 mm
- Wire Thickness 0.38 mm
- Rate 0.0 kg/mm
- Inside Diameter 4 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-5
- CX5
