CCI-00794-CZY - Datasheet

MBA

Category Information

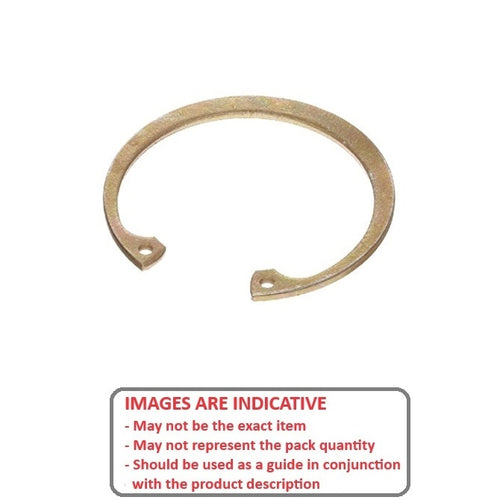

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 7.94 mm
(Equiv. 0.313 in.)
Clip Thickness (T) 0.31 mm _{+/- 0.025}
(Equiv. 0.012 in.)
Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05}
(Equiv. 0.33 in.)
Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Groove Width (W) 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C) 4.32 mm
Clearance in Groove (C1) 4.83 mm
Min. Lug Diameter (h) 0.74 mm
Min. Extension (n) 0.69
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

98409A116
NoCor HO-031-ZD
Small Parts RI-5
HO031ZD
RI5
N13000031AZD
N1300-0031AZD
