LYP-Q2-079-064-S4 - Datasheet
MBA
Category Information

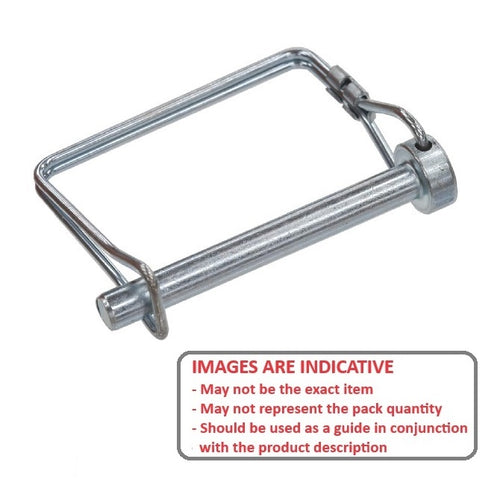

Pins - Wire Lock Lynch - Double Wire - Square - Stainless SteelStainless Steel Square Double Wire Wire Lock Lynch Pins. Also known as 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins
- Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
Product Data
- Pin Diameter (A)
:
7.94
mm
- 0.051 / - 0.178
(Equiv. 0.313 in.) - Grip Length (C)
63.50
mm
+ 0.00 / - 6.35
(Equiv. 2.5 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Clearance To Wire (E) 44.5 mm
- Pin Length (B) 69.9 mm
- Weight Per Piece 54 g
- Finish Passivated
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 98480A687
- NoCor SNAPS-312-2500S
- SNAPS3122500S
