ECL-0069-0079-S15-KR - Datasheet

MBA

Product Data

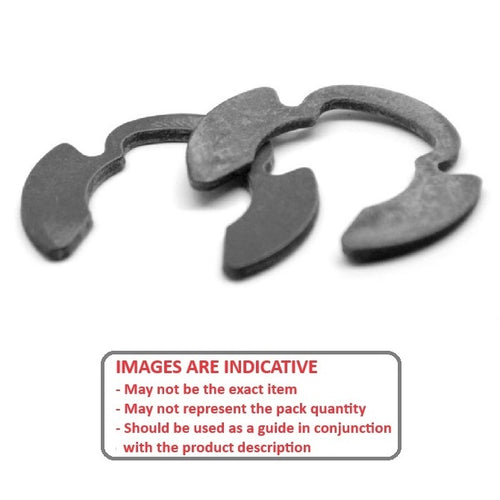

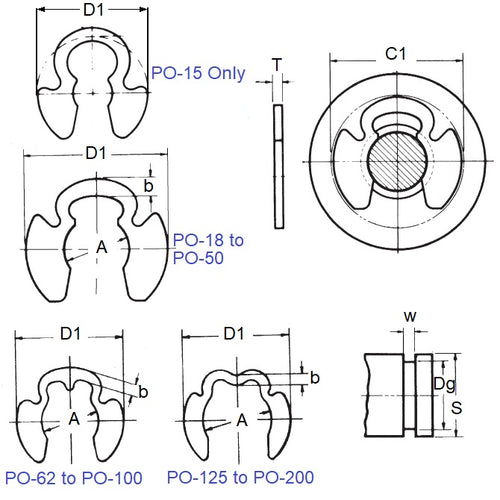

• Minimum Rec. Shaft Dia (S) : 7.94 mm _{+ 2.54 / - 0.00}
  (Equiv. 0.313 in.)
• Groove Dia. (Dg) 6.91 mm _{+/- 0.152}
  (Equiv. 0.272 in.)
• Clip Thickness (T) 1.07 mm _{+/ - 0.052}
  (Equiv. 0.042 in.)
• Clip OD Loose (D1) 14.94 mm
• Groove Width (W) 1.17 mm
• Maximum Rec. Shaft Dia (S) 10.48
• Clip OD in groove (C1) 16.00 mm
• Loose Clip ID (A) 6.35 mm
• Min. Extension (n) 1.02
• Material Stainless Steel Grade PH15-7 Mo

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-031-SS
• 94751A761
• NoCor PO-031-SS
• Rotor Clip PO-031-SS
• PO031SS
• 5304031SS
