BLP-079-0159-CZ - Datasheet
MBA
Category Information

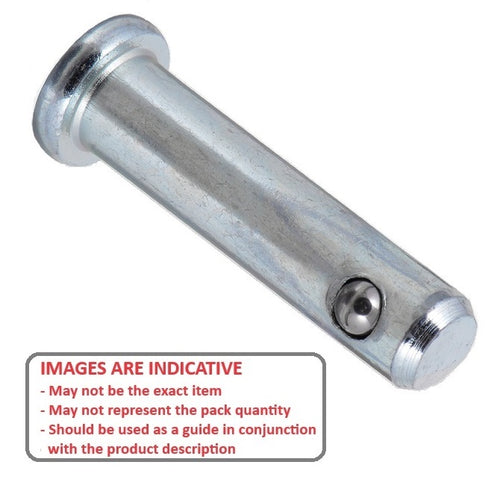

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
 - A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
 - Self locking and reusable with a spring loaded ball lock
 - Zinc plated low carbon steel with stainless steel ball

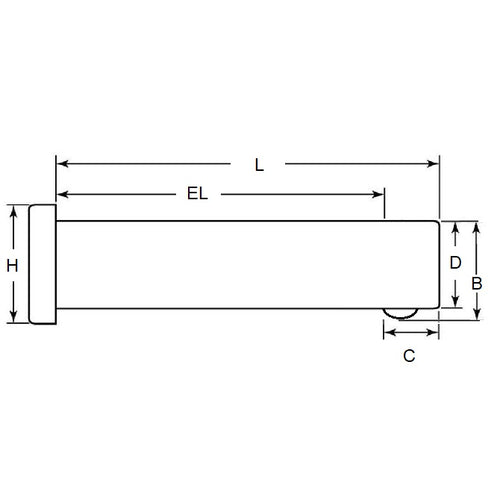

Product Data
- Nominal Pin Diameter (A)
:
7.94
mm
- 0.05 / - 0.18
(Equiv. 0.313 in.) - Grip Length (EL)
15.87
mm
+ 0.51 / - 0.00
(Equiv. 0.625 in.) - Nom. Length (L)
25.40
mm
+ 0.51 / - 0.00
(Equiv. 1 in.) - Locking Ball to End (C) 9.53 mm
 - Open Ball Distance (B) 0.64 to 0.76 mm
 - Material Zinc Plated Low Carbon Steel

Product Compliance and Data
Additional Resources
Cross References
- 90156A402
 - NoCor CLPCZ-0312-1000
 - CLPCZ03121000
 - BLP0790159Z
