BF0079-0095-0051-PC2 - Datasheet

MBA

Category Information

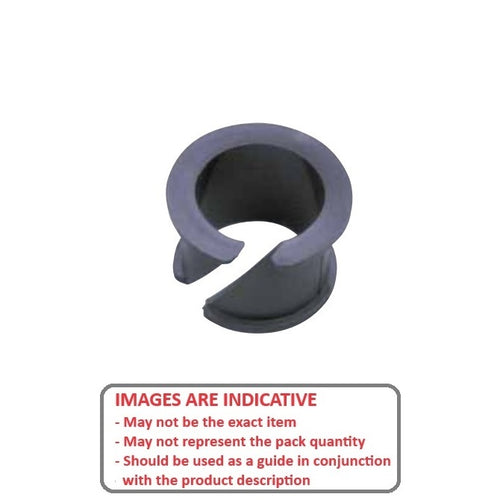

Bushes - Clip - Double Flanged

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

  • Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
  • Light weight
  • M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

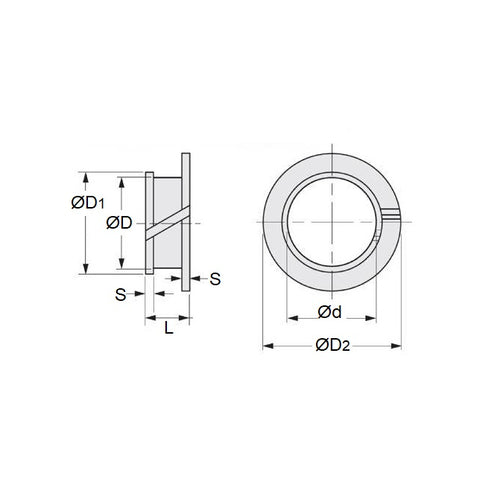

Product Data

  • Nominal Inside Diameter (d) : 7.938 mm
    (Equiv. 0.313 in.)
  • Nominal Outside Diameter (D) 9.525 mm
    (Equiv. 0.375 in.)
  • Overall Length 5.080 mm
    (Equiv. 0.2 in.)
  • Large Flange Dia 12.700 mm
  • Flange Width (S) 0.8 mm
  • Small Flange Dia 10.319 mm
  • Min Housing Bore 9.304 mm
  • Max Housing Bore 9.525 mm
  • Min Shaft Size 7.912 mm
  • Max Shaft Size 7.938 mm
  • Sheet Metal Thickness 1.83 to 3.43
  • Material Plastic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6126K44
  • S99GMC314120
  • S99GMC-314120
