4R-0079-0300-KZO - Datasheet
ExaktKey
Category Information

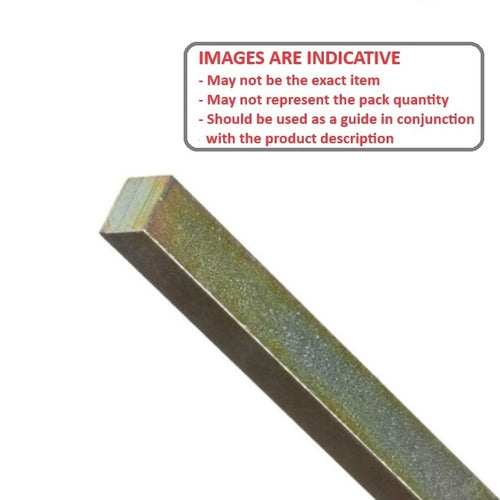

Keysteel Lengths - Square - Zinc PlatedZinc Plated Square Keysteel Lengths. Zinc plated carbon steel key steel. Square steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
- Zinc plating may be silver or yellow in colour
Product Data

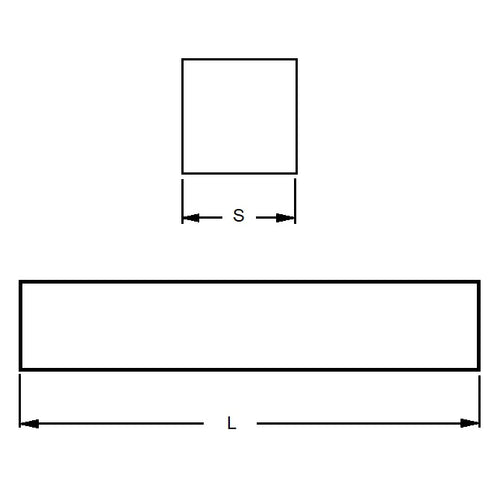

- Width (s1)
:
7.938
mm
+ 0.051 / - 0.00
(Equiv. 0.313 in.) - Height (s2)
7.938
mm
+ 0.051 / - 0.00
(Equiv. 0.313 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Finish Zinc Electroplate
- Tolerance Type Oversized
- Blue End Colour Code
- Material Carbon Steel 1045 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3603120312-12
- 98491A150
- MAK-A-KEY HMED516
- MAK-A-KEY HMED932
- PRECISION KS5-16x5-16
- Small Parts KSS-3125
- KS516x516
- KSS3125
- 360312031212
