BF0049-0079-0127-DP - Datasheet
MBA
Category Information

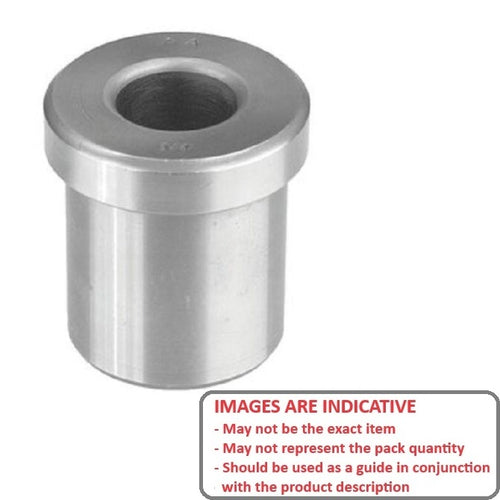

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data

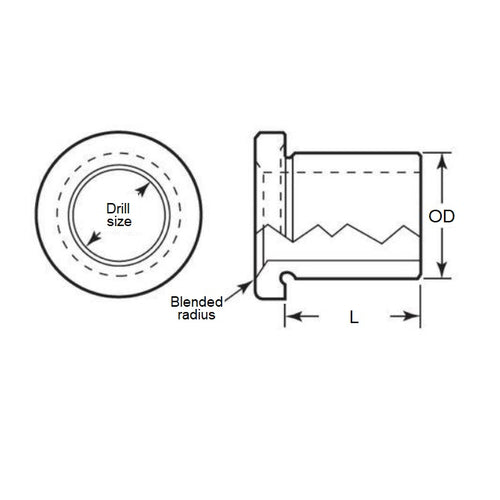

- Outside Diameter (OD)
:
7.938
mm
+ 0.0330 / + 0.0406
(Equiv. 0.313 in.) - Drill Size
4.915
mm
+ 0.0025 / + 0.0102
(Equiv. 0.194 in.) - Length
12.700
mm
(Equiv. 0.5 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A073
- BHT-16080
- BHT16080
