PF-312 - Datasheet
MBA
Category Information

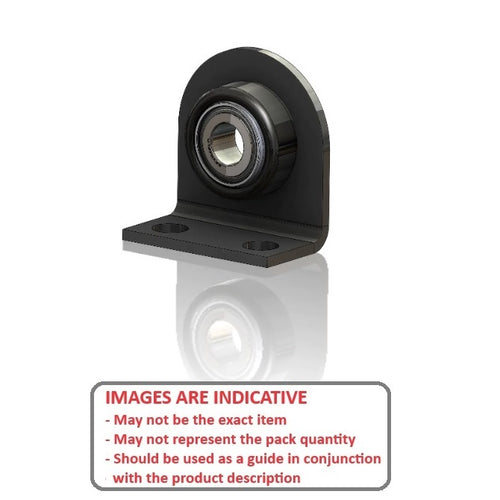

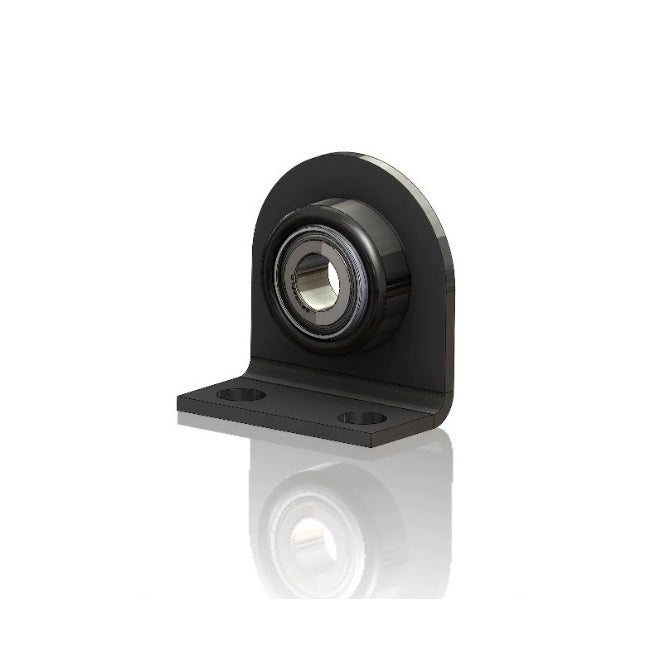

Housing and Bearing Assembly - Pedestal Miniature Self AligningPedestal Miniature Self Aligning Housing Assembly. Spyraflo pressed steel housings incorporating Abec 3 bearings in a special seat allowing for +/- 5 Deg Misalignment. Improves performance and reduces manufacturing costs. Simplify designs.
- Small and cost effective. All bore sizes are mounted in the same size housing for ease of design and cost efficiency.
- High precision bearings pre-mounted with a 5o misalignment capability.
- 40,000 RPM recommended maximum speed with testing
- 27kgf radial static capacity, 54kgf radial dynamic capacity per bearing
- RoHS, REACH and SVHC environmental compliant
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

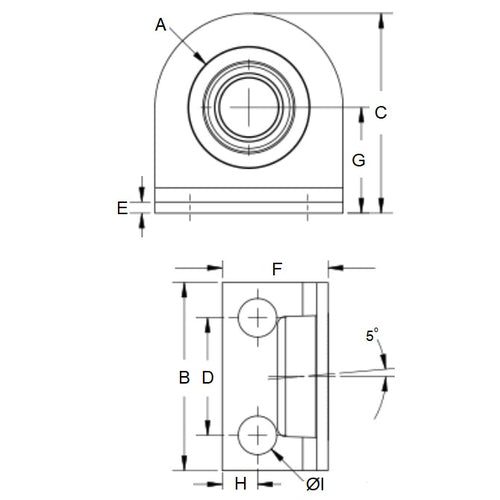

- Nominal Bore
:
7.938
mm
(Equiv. 0.313 in.) - Base Width (F)
14.29
mm
(Equiv. 0.563 in.) - Base Length (B)
25.4
mm
(Equiv. 1 in.) - Body Clearance (A) 16.51 mm
- Hole CENTRES (D) 15.9 mm
- Hole Diameter (I) 5.3 mm
- Overall Height (C) 26.92 mm
- Centre Height (G) 14.29 mm
- Bolt Hole Centre to Back (H) 4.83 mm
