BFM-312-N - Datasheet
MBA
Category Information

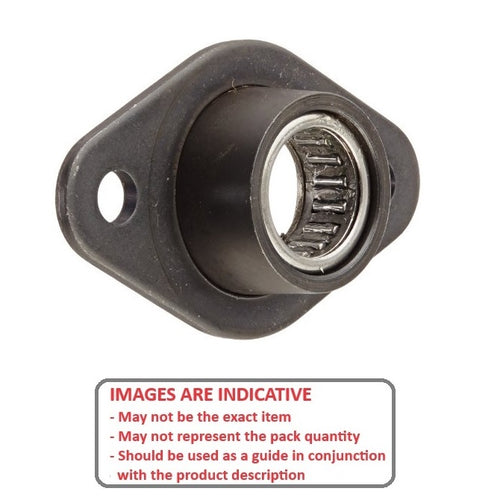

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle RollerNeedle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
7.938
mm

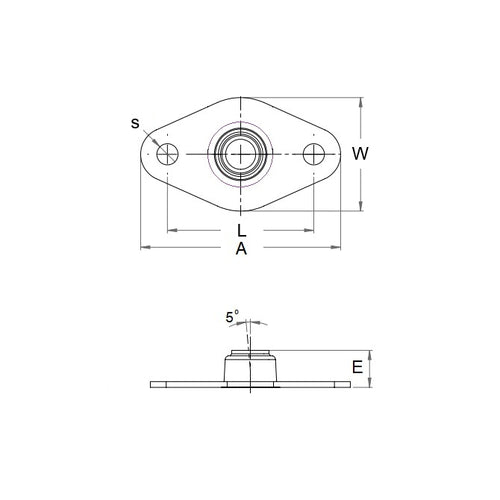

(Equiv. 0.313 in.) - Width (W)
45.21
mm
(Equiv. 1.78 in.) - Overall Length (A)
21.43
mm
(Equiv. 0.844 in.) - Overall Height (E) 31.75 mm
- Min to Max Shaft Dia. 7.925 to 7.938 mm
- Max. Radial Dynamic Load 2891 N
- Bolt Hole Centres (L) 30.99 mm
- Max Speed 35500
- Material Steel
