HF2-312-B - Datasheet
MBA
Category Information

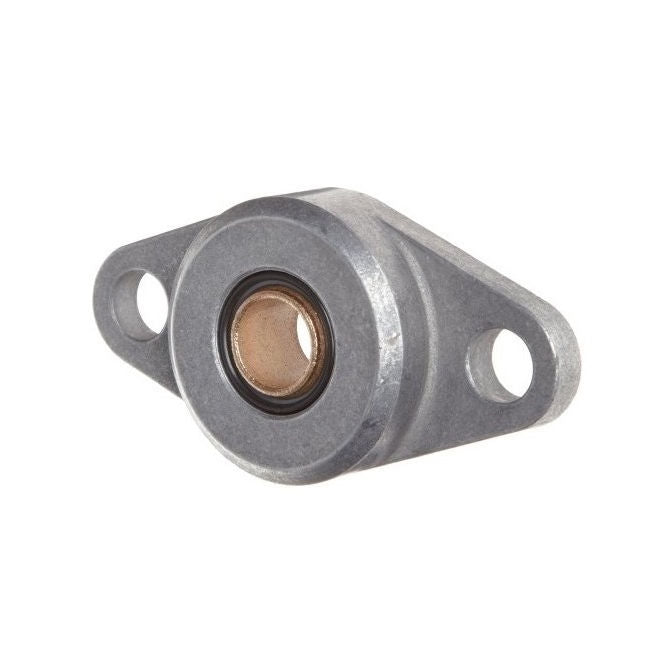

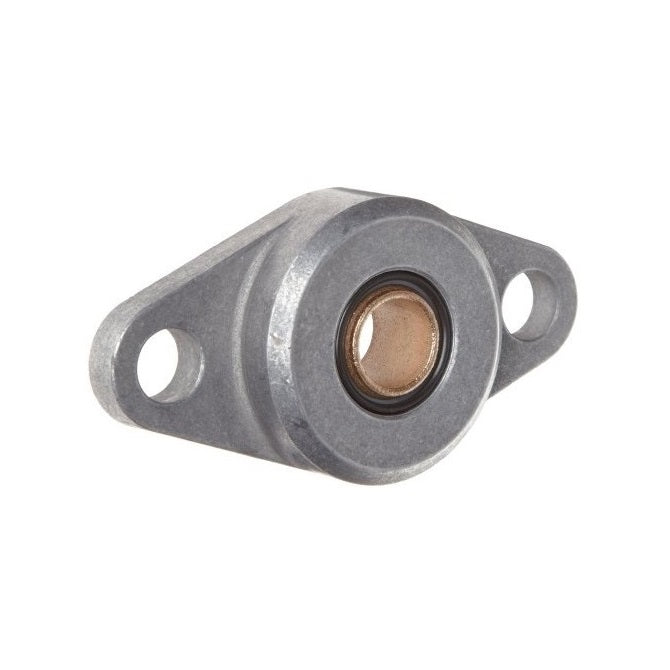

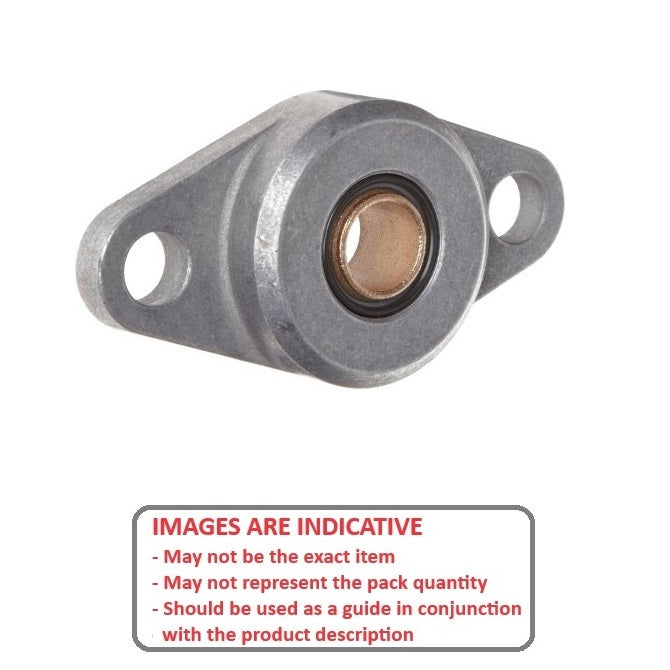

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - BronzeBronze Self Aligning Flanged 2 Bolt Housing Assembly. Spyraflo robust light weight aluminium housing with self aligning bronze bearings.
- +/- 5% Static Alignment
- Sintered aluminium housing
- Corrosion Resistant
- Light weight
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
7.938
mm

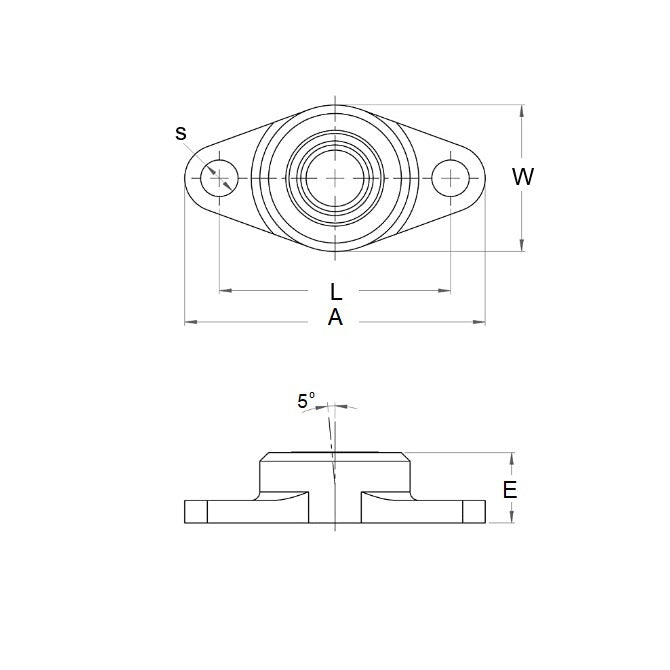

(Equiv. 0.313 in.) - Width (W)
44.45
mm
(Equiv. 1.75 in.) - Overall Length (A)
57.15
mm
(Equiv. 2.25 in.) - Overall Height (E) 28.70 mm
- Min to Max Shaft Dia. 7.958 to 7.978 mm
- Max. Radial Dynamic Load 1201 N
- Bolt Hole Centres (L) 11.18 mm
- Max Speed 12240
- Material Bronze SAE 840 Sintered
