DT1051RS - Datasheet
MBA
Category Information

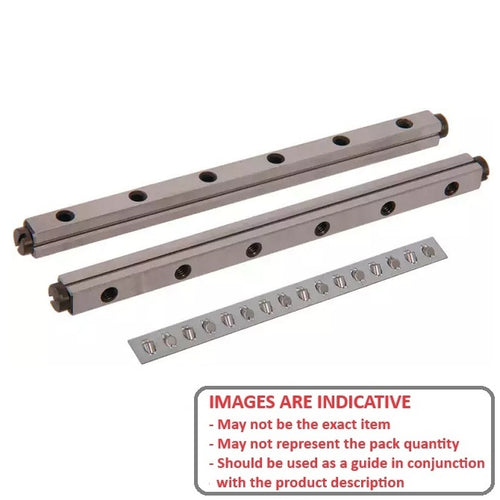

Slides - Linear - Cross Roller RailCross Roller Rail Linear Slides. Compact, precision bearings that can support and guide high loads with high accuracy and repeatability, low friction, and low starting force.
- Each consists of a pair of hardened steel ways containing 90 deg V grooves and a row of alternately crossed cylindrical rollers.
- Installed faced to face on smooth flat and accurately parallel, coplanar or perpendicular surfaces.
- Lubrication required, light grease for low speeds to continuous oil bath/mist for high speeds.
Product Data
- Number of Rollers : 7.00
- Length
80.01
mm
(Equiv. 3.15 in.) - Travel Length
57.99
mm
(Equiv. 2.283 in.) - No. Of Holes 2.00
- Load 139.71 Kg

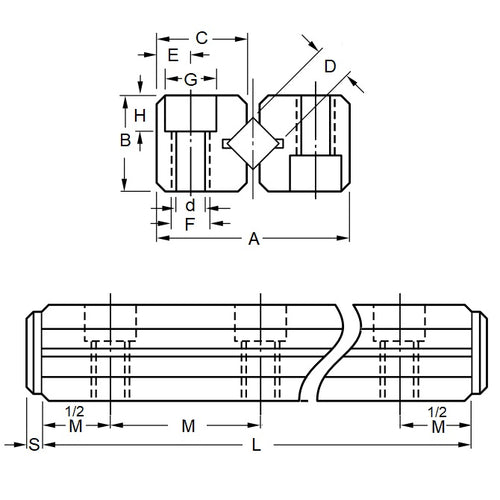

- Rail Diamentions (A/B/C) 22.00 / 11.00 / 10.21 mm
- D 4.01 mm
- Bolt to suit (F) M5 (5x0.8mm)
- Spacing between Bolts (M) 40.00 mm
- More Information For more information please contact us
Product Compliance and Data
Additional Resources
Cross References
- DT1051
- DT-1051
