ES-0762-0699-08-M - Datasheet
MBA
Category Information

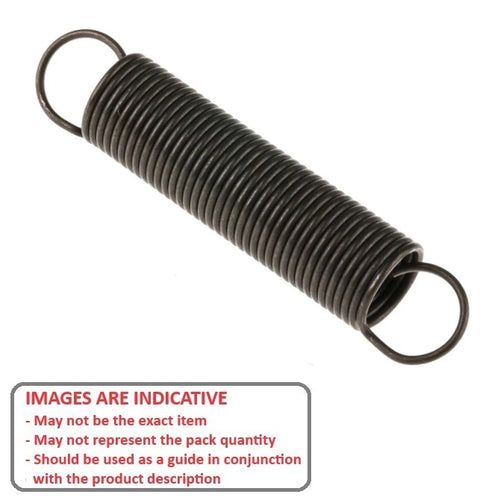

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

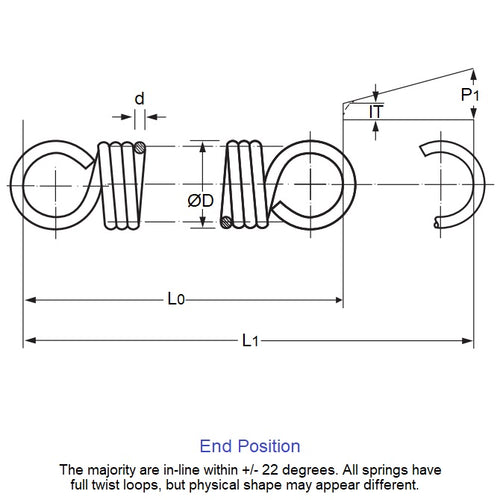

Product Data
- OD (D0)
:
7.62
mm
 (Equiv. 0.3 in.)
- Overall Length (L0)
69.9
mm
 (Equiv. 2.752 in.)
- Wire Diameter (d)
0.79
mm
 (Equiv. 0.031 in.)
- Max. Extension (L1) 175.260 mm
- Spring Rate 0.175 N/mm
- Initial Tension (IT) 1.7 N
- Load at L1 19.530 N
- End Type Closed - Full Loop
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- ASI E0300-031-2750
- E03000312750
