CSC-075-017-07-M - Datasheet
MBA
Category Information

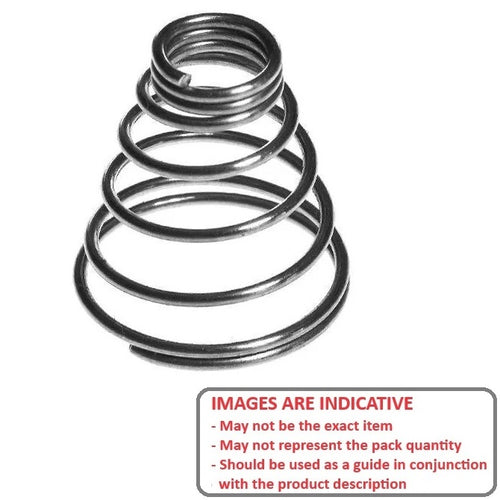

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate

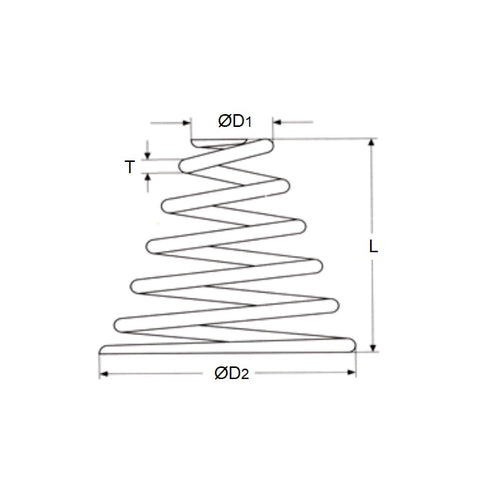

Product Data
- Large End OD
:
7.50
mm
(Equiv. 0.295 in.) - Free Length
17.5
mm
(Equiv. 0.689 in.) - Small End OD
5.2
mm
(Equiv. 0.205 in.) - Inside Diameter Clearance 3.8 mm
- Wire Thickness 0.69 mm
- Rate 0.2 kg/mm
- Inside Diameter 3.8 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX7
- CX-7
