Miniature Bearings Australia
OR-00759-262-N70-109 - Datasheet
MBA
Category Information

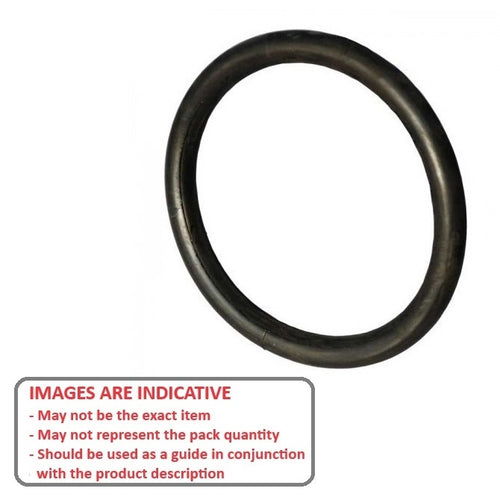

O-Rings - General Purpose - Nitrile RubberNitrile Rubber General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
Product Data
- Inside Diameter (ID)
:
7.59
mm
(Equiv. 0.299 in.) - Section (t)
2.62
mm
(Equiv. 0.103 in.) - Colour Black
- Hardness Duro 70
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- 9452K172
- Small Parts ORB-109
- ORB109
- BS109
- BS109NBR70
- BS109-NBR70
