TP-075-0635-C - Datasheet
MBA
Category Information

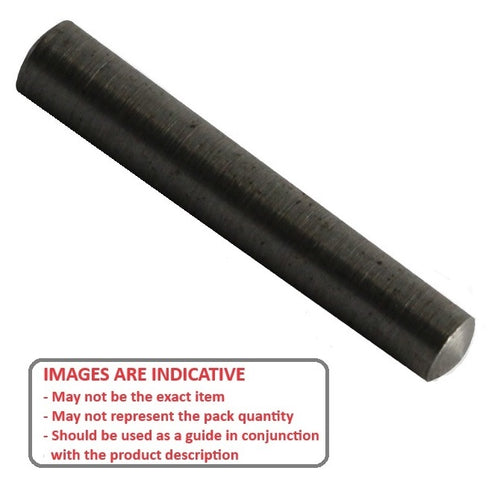

Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data

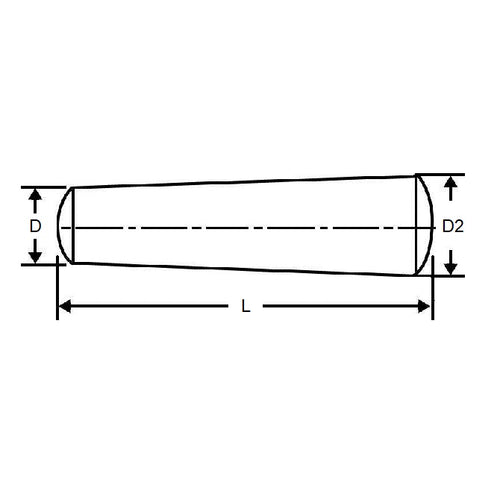

- Nom. Large End Diameter (D2) : 7.54 mm
- Length (L) 63.50 mm
- Nom. Small End Diameter (D) 6.22 mm
- Pin Number 5
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A317
- Huyett® TP-05-2500
- NoCor® TP-05-2500
- TP052500
