CSC-071-014-06-M - Datasheet
MBA
Category Information

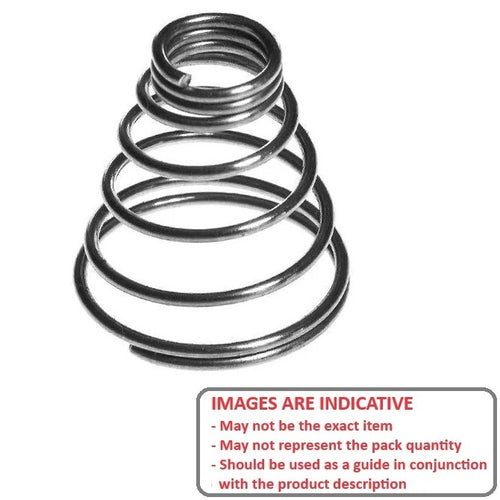

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate

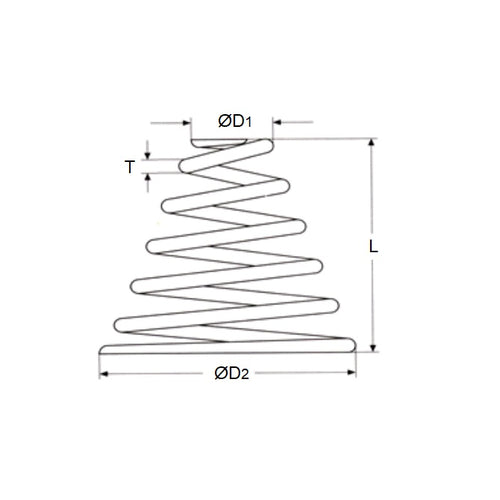

Product Data
- Large End OD
:
7.10
mm
(Equiv. 0.28 in.) - Free Length
14.3
mm
(Equiv. 0.563 in.) - Small End OD
4.8
mm
(Equiv. 0.189 in.) - Inside Diameter Clearance 3.5 mm
- Wire Thickness 0.61 mm
- Rate 0.1 kg/mm
- Inside Diameter 3.5 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX3
- CX-3
