CCE-00701-S15 - Datasheet
MBA
Category Information

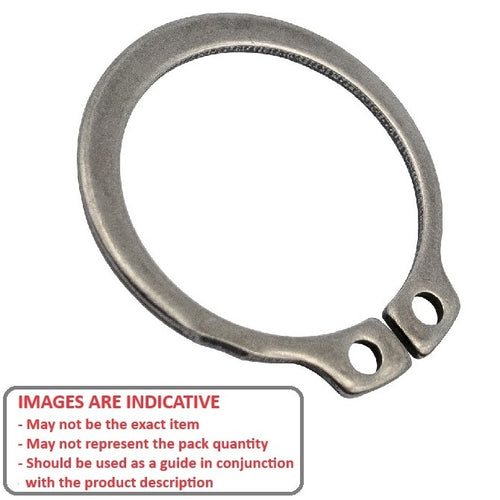

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
7.01
mm
(Equiv. 0.276 in.) - Clip Thickness (T)
0.64
mm
+/- 0.051
(Equiv. 0.025 in.) - Groove Dia. (Dg)
6.48
mm
+/- 0.051
(Equiv. 0.255 in.) - Approx. Loose Circlip ID (A) 6.35 mm
- Groove Width (W) 0.74 mm
- Clearance on Shaft (C1) 12.19 mm
- Clearance in Groove (C1) 11.68 mm
- Min. Lug Diameter (h) 0.99 mm
- Min. Extension (n) 0.89
- Standard MIL-16624
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-027-SS
- SH027SS
- N14000027KSF
- N1400-0027KSF
- S73HW2-100-027
- S73HW2100027
