Miniature Bearings Australia
RCL-070-152-ZD - Datasheet
MBA
Category Information
R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

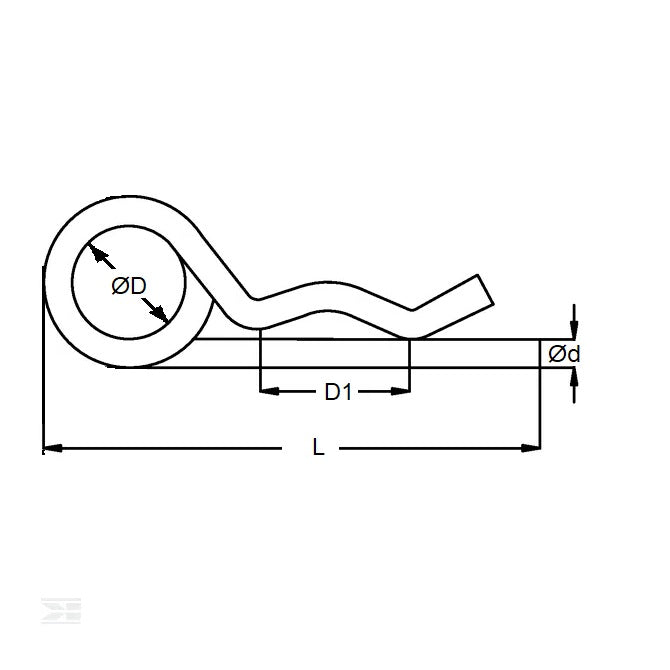

- Wire Thickness (d) : 7.00 mm
- Length (L) 152.0 mm
- Material Zinc Plated
- Drill Hole Size 8.00 mm
- Approx.Inside Eye (D) 28.00 to 32.00 mm
- Shaft Size Range 26.00 to 40.00 mm
- Approx. Bridge Length (D1) 48 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD7130
- RPD7-130
