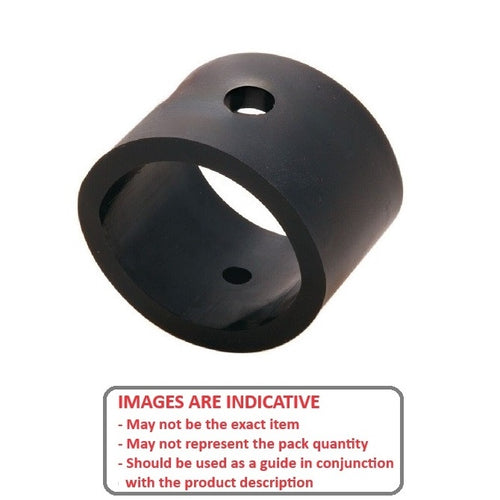

GBR-4RS - Datasheet
MBA
Category Information
Bumpers - Elastomer - Radial - Low Energy - Longer - Soft StopSoft Stop Longer Low Energy Radial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 670 N

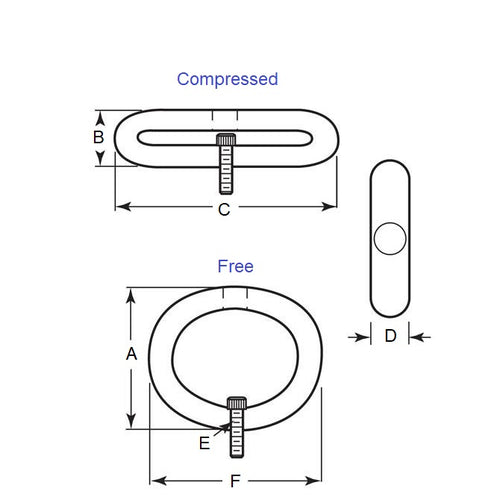

- Free Height (A)
43.7
mm
+/- 1.4
(Equiv. 1.72 in.) - Free Bulge
49.5
mm
+/ - 1.5
(Equiv. 1.949 in.) - Solid Height (B) 9.4 mm
- Width 34.5 mm +/- 0.8
- Wrench Opening 9.7 mm +/- 0.4
- Mounting Hole (E) 5.6 mm
- Bulge at Solid Height 68.1 mm
- Material Elastomer
