Miniature Bearings Australia
TPM-0600-06000-EE - Datasheet
ENQUIRE
Category Information

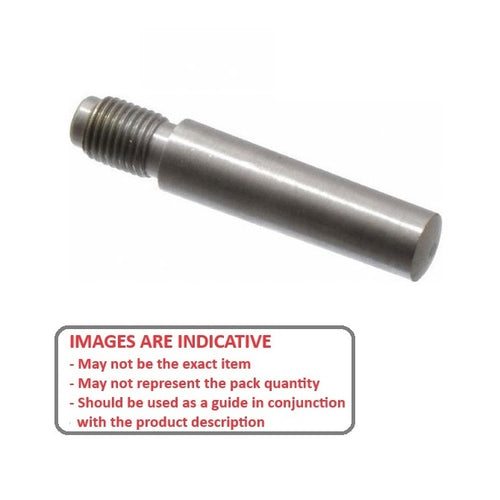

Pins - Taper Metric - Extractable - External ThreadExternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded externally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7977.
Product Data

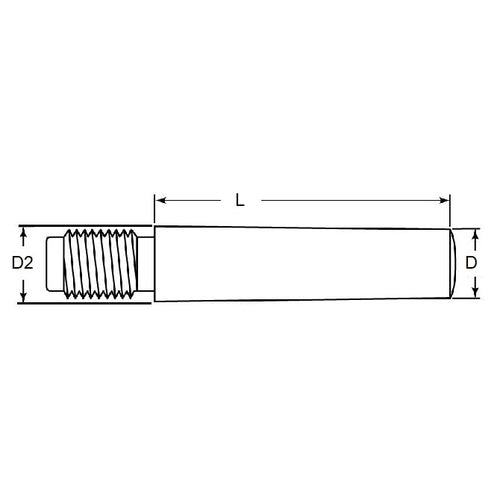

- Nom. Small End Diameter (D) : 6.00 mm
- Overall Length (L) 60.00 mm
- Nom. Large End Diameter (D2) 7.20 mm
- Thread Size M6
- Standard DIN7977
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® TPTME-060-060
- TPTME060060
