PSP-060-040-S2 - Datasheet
MBA
Category Information

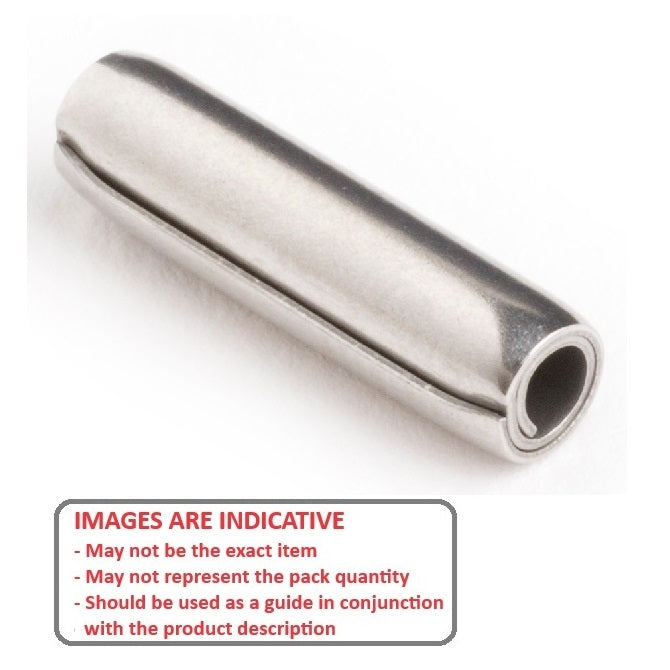

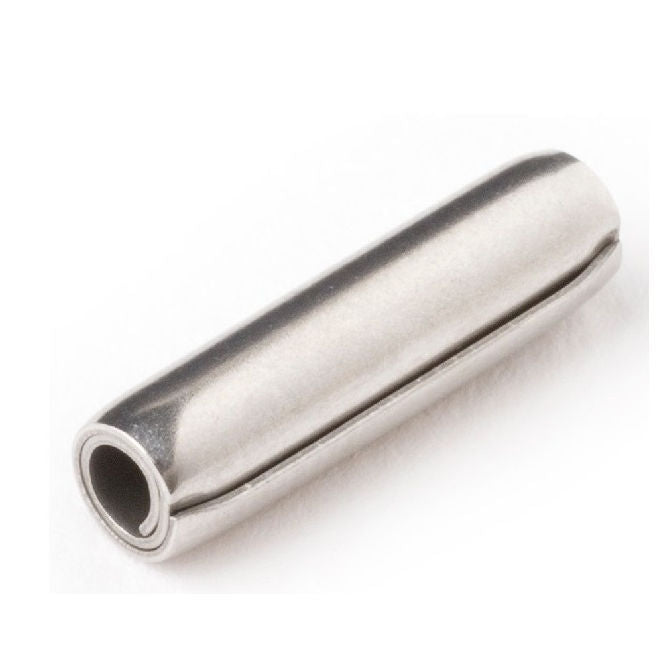

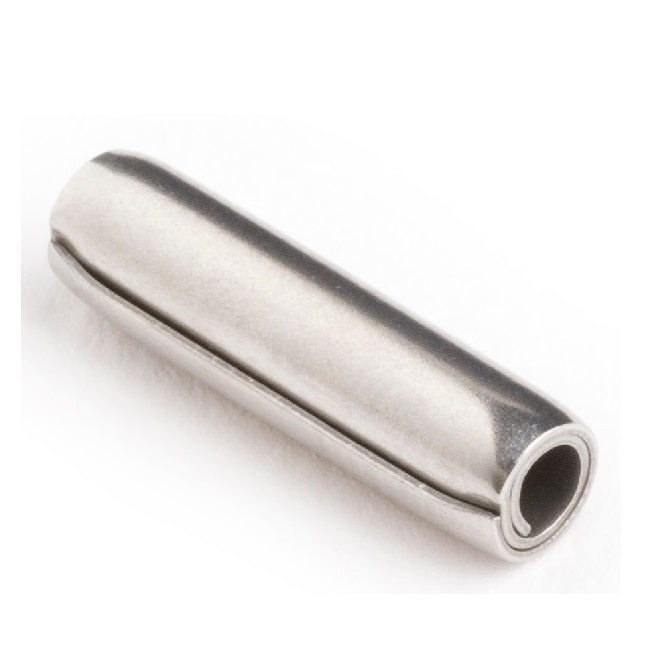

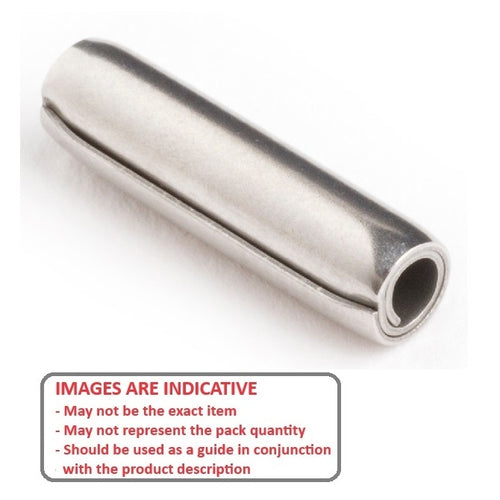

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

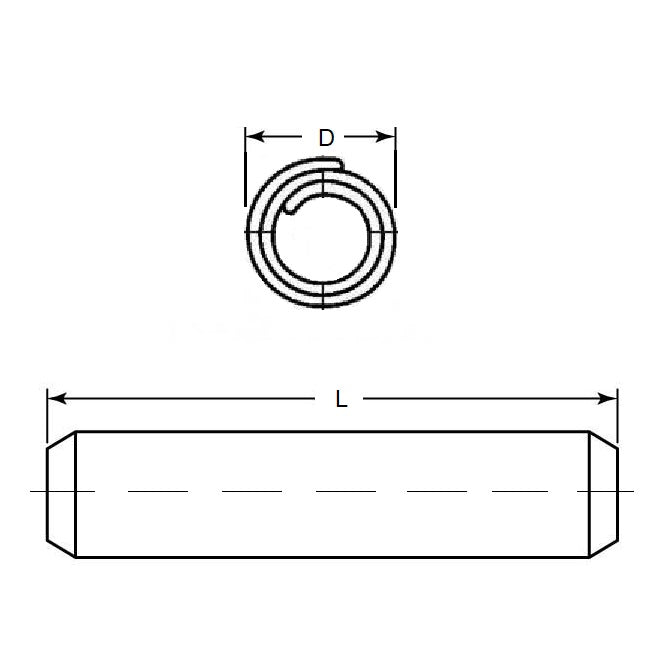

- Nominal Hole Diameter : 6.00 mm
- Length
40.00
mm
+/- 0.50
(Equiv. 1.575 in.) - Drill Size 6.00 - 6.15 mm
- Loose Diameter 6.25 - 6.50 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91612A201
- EP640
- EP6-40
