BP0030-0060-0080-DP - Datasheet
MBA
Category Information

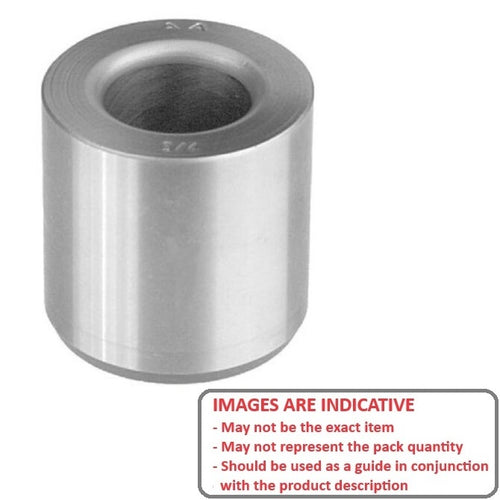

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

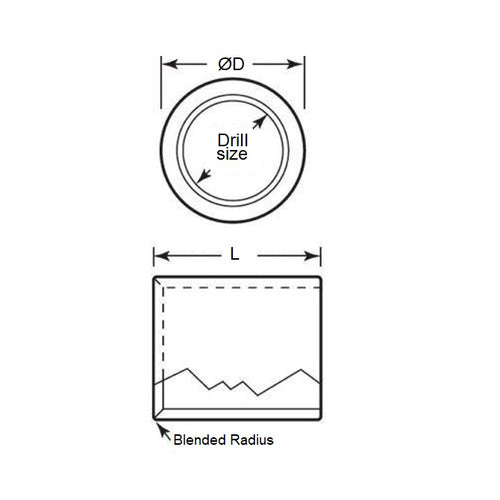

- Outside Diameter (OD)
:
6.000
mm
+ 0.019 / + 0.027
(Equiv. 0.236 in.) - Drill Size
3.000
mm
+ 0.002 / + 0.008
(Equiv. 0.118 in.) - Length
8.000
mm
(Equiv. 0.315 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8486A416
- DM03008
- DM-03008
