RP060-0200-C - Datasheet
MBA
Category Information

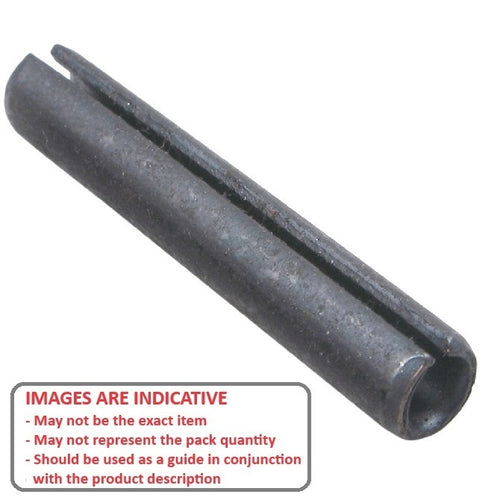

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
20.00
mm
(Equiv. 0.787 in.) - Free Diameter
6.60
mm
(Equiv. 0.26 in.) - Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 802405
- 91611A405
- NoCor SPM-060-020
- Seeger SPM060020ASF
- NoCor SPM-060-020-I
- SAP6-20
- SAP620
- SPM060020I
