Miniature Bearings Australia
696-ZZ-MC3 - Datasheet
MBA
Category Information

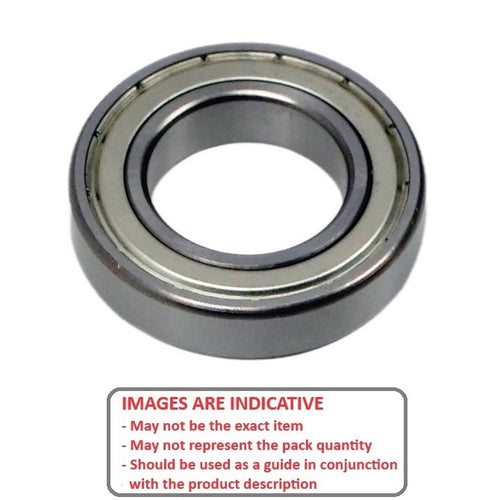

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

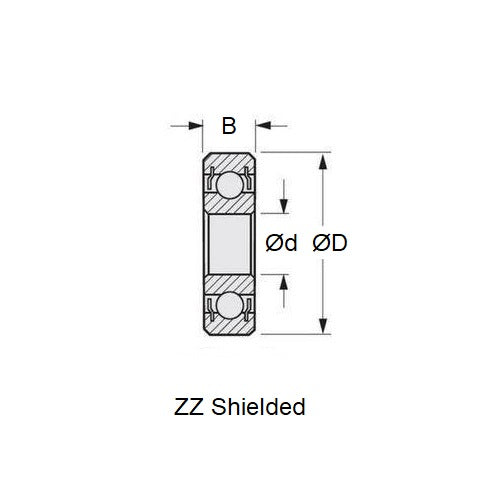

- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - OD (D)
15.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.591 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 696
- Limiting Speed 40000
- Cage Type Ribbon
- Static Load Rating KGf 53
- Dynamic Load Rating KGf 137
- Radii 0.20 mm
- Inner Shoulder (UI) 7.50mm
- Outer Shoulder (UO) 13.00 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- MAZ - 91 All Models - Bearing 6-15-5mm
- MDS - 18 - 60 - Bearing 6-15-5mm
- MVVS - 61 All Models - Bearing 6-15-5mm
- MVVS - C - 21 - Bearing 6-15-5mm
- PRO F1 - Junior - 26 - Bearing 6-15-5mm
- Profi - 0.15 CU IN. F2D - Front Bearing
- Team Race - 2.5CC - 60 - Bearing 6-15-5mm
- Thunder Tiger - 21 O-B - 2 Stroke - Pinion Gear Ball Bearing
Cross References
- SERPENT 1343
- GMP 6042
- WIB 619-6-2Z
- WIB 619-6-Z
- GRW 696-2Z
- ISO 696ZZ
- ISO 696-ZZ
- NTN 696-ZZ
- ADR AY6-ZZ
- 61962Z
- 6196Z
- AY6ZZ
- R1560ZZ
- R1560-ZZ
- 696-ZZMC3
- 696ZZMC3
- 696SS
- 6962Z
- 696 Basic Size Ref
