W0060-LE-013-007-CZ - Datasheet
MBA
Category Information

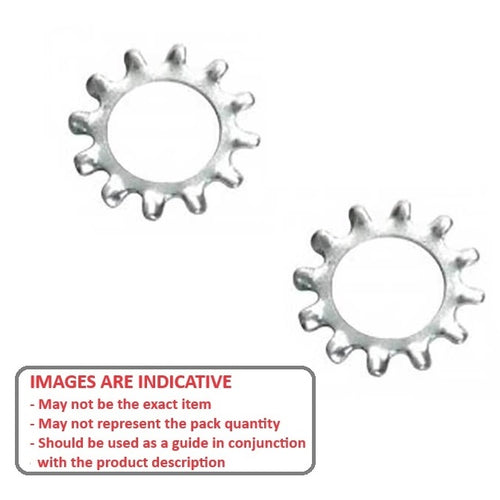

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.

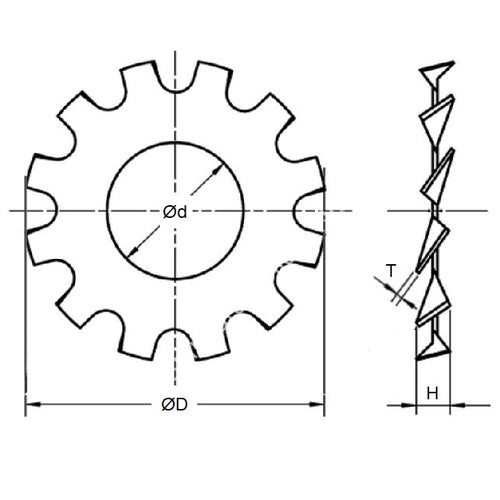

Product Data
- Nominal Inside Diameter
:
6.00
mm
(Equiv. 0.236 in.) - Outside Diameter
13
mm
(Equiv. 0.512 in.) - Material Thickness (T)
0.70
mm
(Equiv. 0.028 in.) - Nominal Screw Size M6
- Actual ID (Ref) 6.2 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000828
- WASCA WLESZNP6
