GBA-101SRS - Datasheet
MBA
Category Information

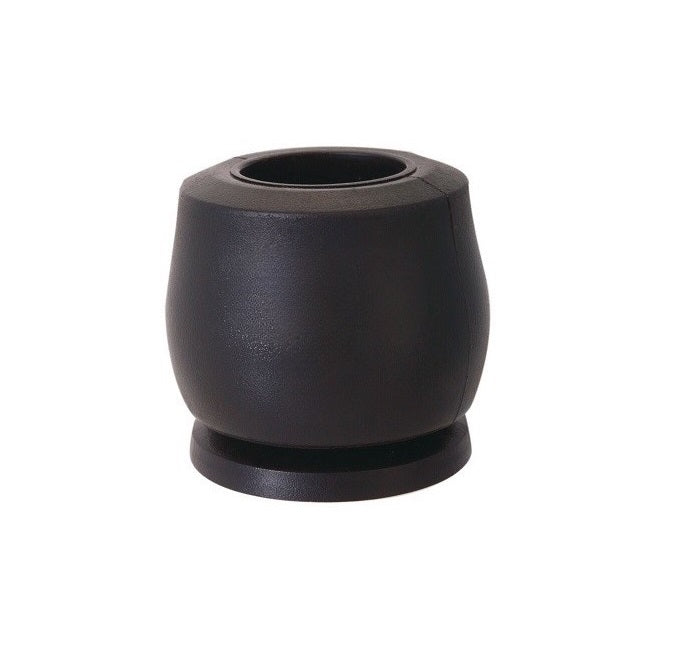

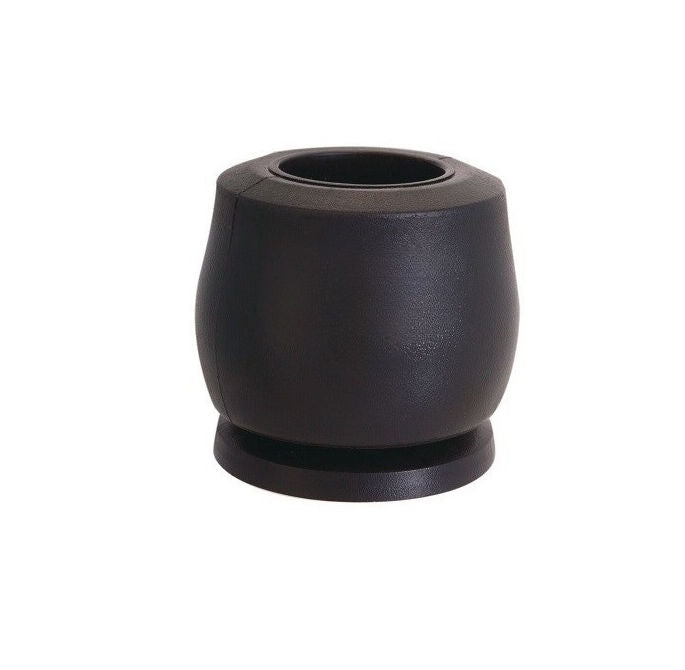

Bumpers - Elastomer - Axial - Medium Energy - Low ReactionLow Reaction Medium Energy Axial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 800 N
- Free Height (A)
18.3
mm
+/- 0.6
(Equiv. 0.72 in.) - Free Bulge
20.1
mm
+/ - 0.6
(Equiv. 0.791 in.) - Solid Height (B) 10.7 mm
- Base Diameter 18.5 mm +/- 0.5
- Wrench Opening (G) 12.2 mm +/- 0.4
- Mounting Hole (F) 7.8 mm
- Bulge at Solid Height 27.4 mm
- Material Elastomer
