FMR126A-ZZS-ECO - Datasheet
ECO
Category Information

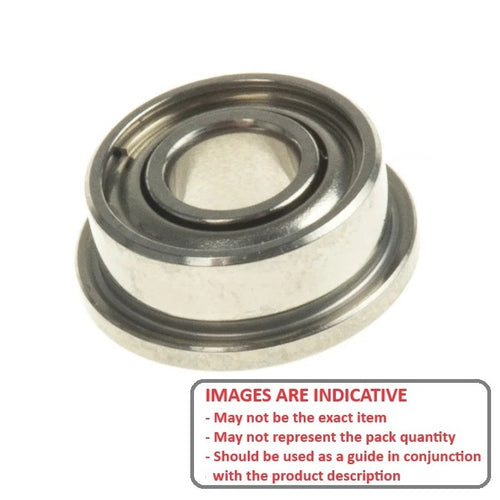

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

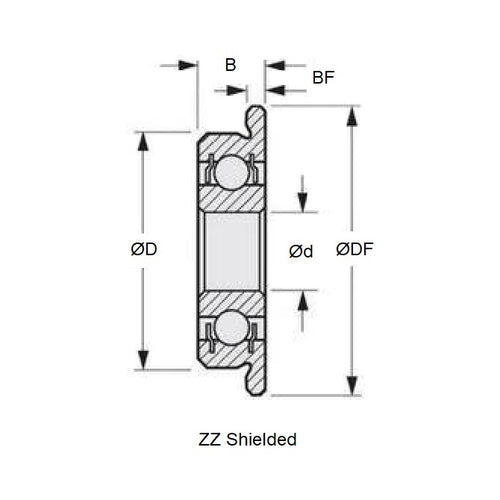

- ID (d)
:
6.000
mm
(Equiv. 0.236 in.) - OD (D)
12.000
mm
(Equiv. 0.472 in.) - Width (B)
4.000
mm
(Equiv. 0.157 in.) - Flange Diameter (DF) 13.600 mm
- Flange Width (BF) 0.800 mm
- Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR126A
- Limiting Speed 40850
- Cage Type Standard
- Static Load Rating KGf 28.5
- Dynamic Load Rating KGf 69.4
- Radii 0.20 mm
- Inner Shoulder (UI) 7.20mm
- Outer Shoulder (UO) 10.90 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
