DP060-012-CH-1EF - Datasheet
NoCor
Category Information

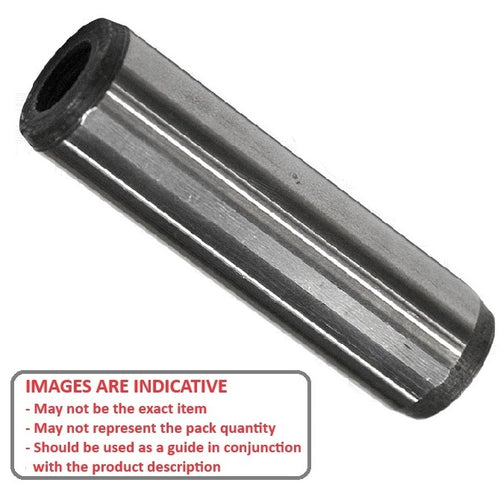

Pins - Dowel - Extractable - With VentWith Vent Extractable Dowel Pins. Hardened and Ground Steel 100 Cr6 with a ground flat along one edge. DIN7979D.
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes
- Hardness 55-62 HRC, HV550-650
- An air release flat is ground along the full length of the pin to overcome the problem of pressure build up by trapped air.
Product Data

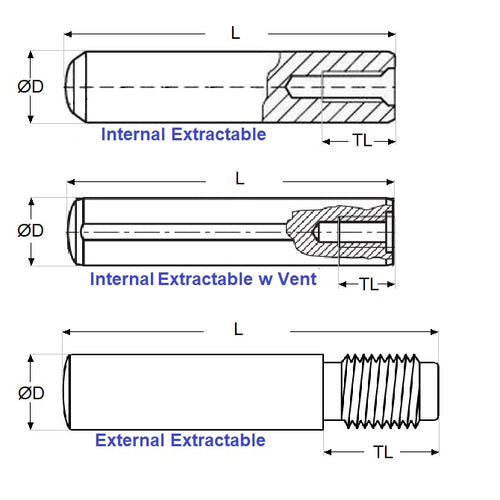

- Diameter (D)
:
6.000
mm
+ 0.006 / + 0.015
(Equiv. 0.236 in.) - Length (L)
12.00
mm
+/- 0.350
(Equiv. 0.472 in.) - Approx. Overall Length
12.00
mm
+/ - 0.350
(Equiv. 0.472 in.) - Type 1 (Chamfer One End)
- Hardness Heat Treated and Ground Rc 58-62
- Thread Size M4 (4x0.7mm)
- DIN 6325
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWPFM-060-012
- NoCor DOWPM-060-012
- DOWPFM060012
- DOWPM060012
- DHX612
- DHX6-12
