SMR106A-ZZS-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

ID (d) : 6.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.236 in.)
OD (D) 10.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.394 in.)
Width (B) 3.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.118 in.)
Precision Grade Abec 1
Closure Type ZZS
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR106A
Limiting Speed 45000
Cage Type Crown
Static Load Rating KGf 22
Dynamic Load Rating KGf 51
Radii 0.15 mm
Inner Shoulder (UI) 7.04mm
Outer Shoulder (UO) 9.30 mm
Number of Balls 10
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZS
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Helicopter Parts
Bergen Machine - Intrepid 60 - Bearing
Century - Hawk II - Bearing
Century - Hawk II Upgrade Kit - Bearing
Century - Hawk Sport All - Bearing
Century - Ninja Pro 30/46 All - Bearing
Gaui - Hurricane 550 - 550 Bearing 6-10-3mm
Hirobo - Lepton EX - Bearing
Hirobo - Sceadu 30 Evolution - Bearing
Hirobo - Sceadu 50 Evolution - Bearing
Hirobo - Shuttle Challenge Upgrade Kit - Bearing
Hirobo - Shuttle Plus - 60
Hirobo - Shuttle ZX-0402 Upgrade Kit - Bearing
Hirobo - ZTS Upgrade Kit - Bearing
Kyosho - CALIBER 30 - Bearing
Kyosho - CONCEPT 30 SR-T - Bearing
Kyosho - CONCEPT 60 SR - Bearing
Kyosho - NEXUS 30 - Bearing
Mikado - Logo 10 3D Version - Bearing
MS Composit - Hornet Micro Heli - Bearing
Thunder Tiger - Raptor 30 - 30
Thunder Tiger - Raptor 50 SE - 50
Thunder Tiger - Raptor 50 SE Complete Kit - 50
Thunder Tiger - Raptor 50 Titan - Bearing
Thunder Tiger - Raptor 50 V2 - Double Shielded Bearing 6-10-3mm
Thunder Tiger - Raptor 60 V2 - Bearing 6-10-3mm
Thunder Tiger - Raptor 90 SE - Bearing 6-10-3mm

Cross References

View full details

SMR106A-ZZS-MC3Diagram

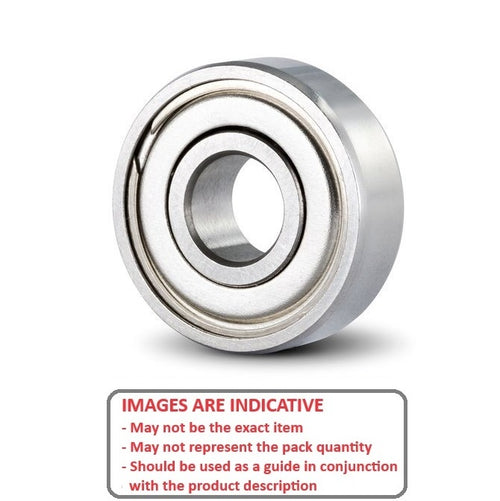

SMR106A-ZZS-MC3Image
