SK028B-038-SL-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Slotted - Steel

Steel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 6BA (2.794mm)
  • Overall Length (L) 38.1 mm
    (Equiv. 1.5 in.)
  • Material Zinc Plated
  • Max Head Diameter 5.4 mm
  • Max Head Height 1.3 mm
  • Type Countersunk / Slotted
  • Pitch 0.530 mm
  • Threads Per Inch 47.93 TPI
  • Material Steel Zinc Plated
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCSZP6BA112
View full details

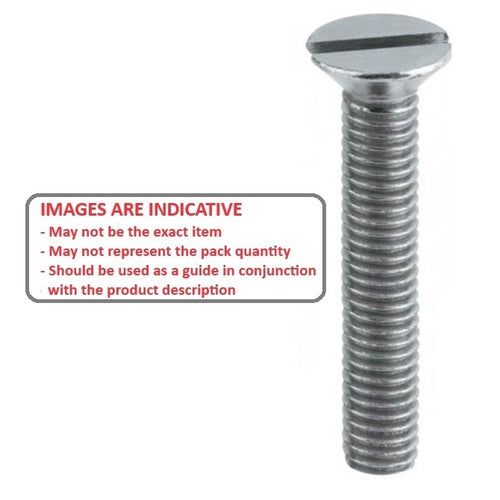

SK028B-038-SL-CZDiagramSK028B-038-SL-CZImage
