CCI-06700-C - Datasheet
MBA
Category Information

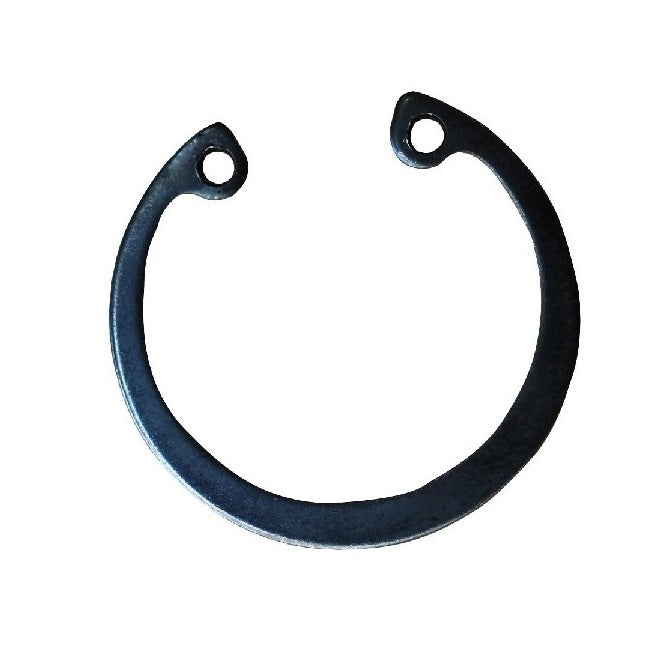

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
67.00
mm
(Equiv. 2.638 in.) - Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.) - Groove Dia. (Dg)
70.00
mm
+ 0.00 / - 0.07
(Equiv. 2.756 in.) - Approx. Loose Circlip OD (Dr) 72.50 mm + 1.10 / - 0.46
- Groove Width (W) 2.65 mm + 0.13 / - 0.00
- Clearance in Bore (C) 50.80 mm
- Clearance in Groove (C1) 54.60 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 4.50
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-067
- Bossard BN-822-067
- Waldes D1300-067
- NoCor DHO-067
- Rotor Clip DHO-067
- Seeger J-067
- Seeger J67
- Seeger J67-S
- Seeger J67X2.5
- Seeger NZT.J67
- D13000670
- D1300-0670APP
- D13000670APP
- J067
- J67S
- DHO067
- 472067
- BN822067
