B-100T-0066-0120-PSB - Datasheet

MBA

Category Information

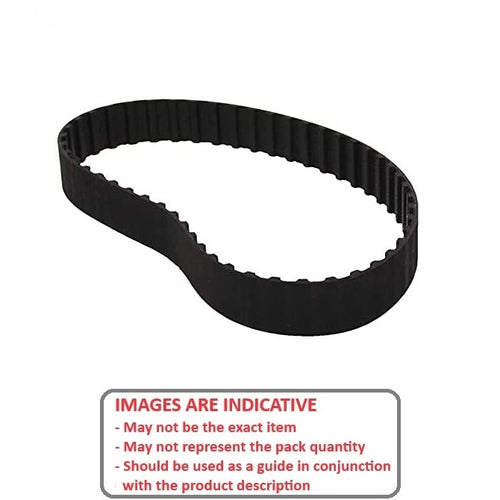

Belts - Timing 10.000mm Pitch - T10 - 12mm Wide

12mm Wide T10 Timing 10.000mm Pitch Belts. T Series 10mm Metric Timing Belts.

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

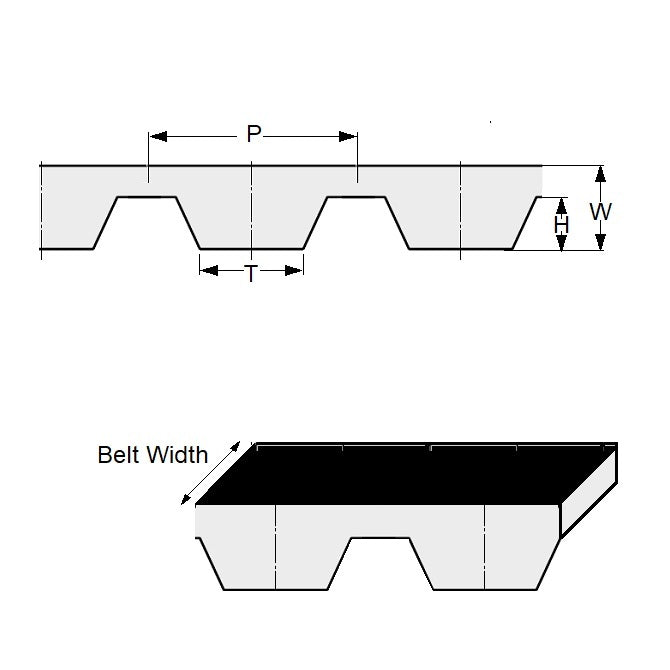

  • Tooth Length (T) - 3.25mm
  • Tooth Height (H) - 2.5mm
  • Belt Height (W) - 4.5mm - Corner Radii ( r )- 0.6mm
  • Pitch (P) - 10mm

Product Data

  • Teeth : 66
  • Length 660 mm
    (Equiv. 25.984 in.)
  • Width 12.0 mm
    (Equiv. 0.472 in.)
  • Reinforcement Steel
  • Appearance Black
  • Breaking Strength 3264 N
  • Material Polyurethane with Steel Cords
Country of Origin: US
