P-025T-065-160A - Datasheet
MBA
Category Information

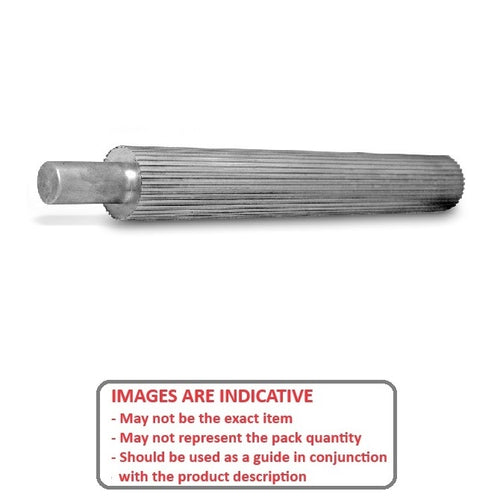

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 65

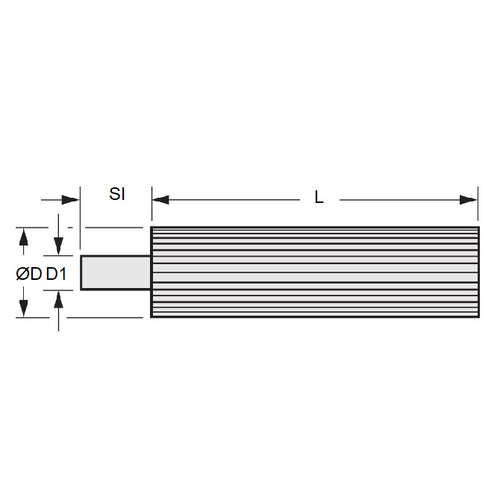

- Min. Usable Length (L)
160.0
mm
(Equiv. 6.299 in.) - Pitch Diameter (PD)
51.80
mm
(Equiv. 2.039 in.) - Outside Diameter (OD) 51.20 mm
- Shank Diameter (D1) 19.10 mm
- Shank Length (Sl) 20.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 65T2.5-PS160A
- A6A31M065T16
- 65T25PS160A
