TLB-3020-0650 - Datasheet
MBA
Category Information

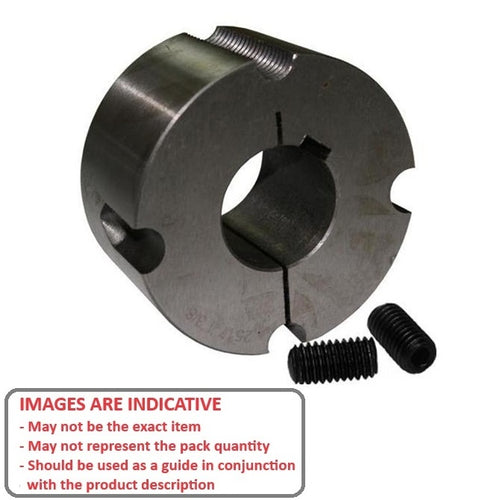

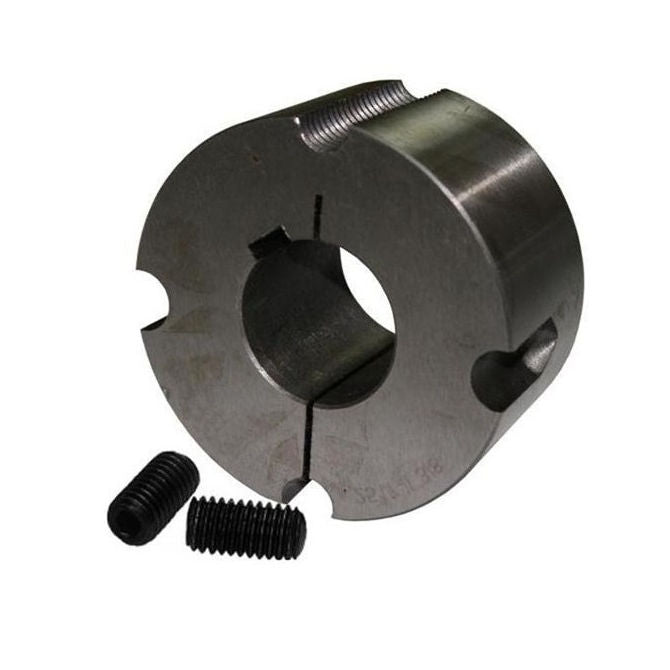

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

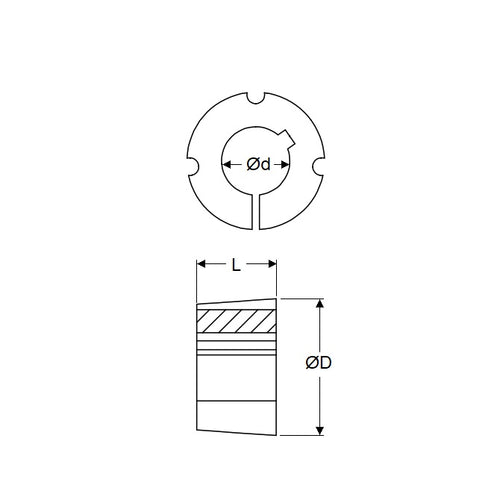

- Bore (d)
:
65.000
mm
(Equiv. 2.559 in.) - Large End Dia. (D)
108.0
mm
(Equiv. 4.252 in.) - Length (L)
50.8
mm
(Equiv. 2 in.) - Taperlock Series 3020
- No of Screws 2
- Screw Size 5/8x1-1/4 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 3020X65MM
- 57095K365
