PBC-730RS - Datasheet
MBA
Category Information
Linear - Redi-Rail RailRedi-Rail Rail Linear. Match carriage and rail by rail widh
- Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
- A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
- Rollers made from 52100 hardened steel, lubricated and sealed.

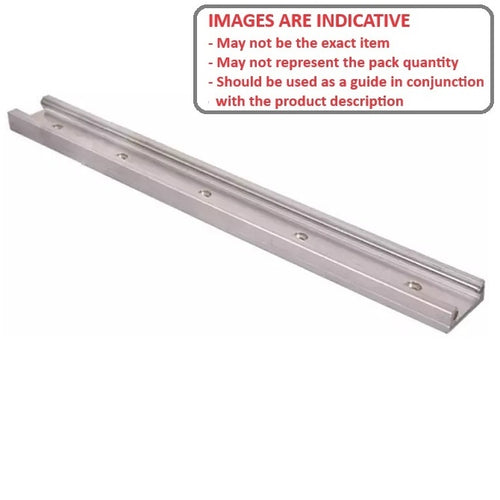

- Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

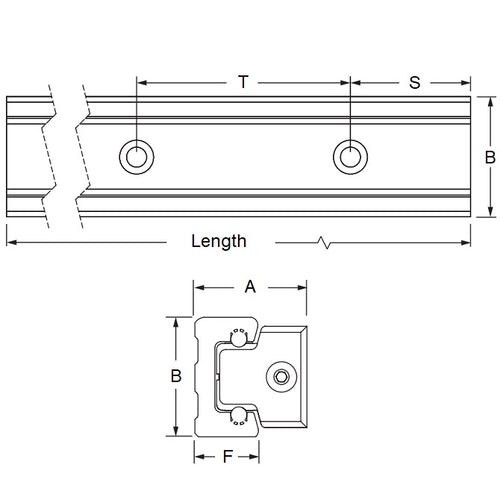

Product Data
- Width (B)
:
65.0
mm
(Equiv. 2.559 in.) - Length
480.0
mm
(Equiv. 18.898 in.) - Height (F)
27.000
mm
(Equiv. 1.063 in.) - Bolt Distance from End (S) 40.0 mm
- Bolt Spacing (T) 80.000 mm
- Bolt Size (X) M6
- No. Of Holes 6.000
Product Compliance and Data
Additional Resources
Cross References
- Pacific RR65-480
- RR65480
