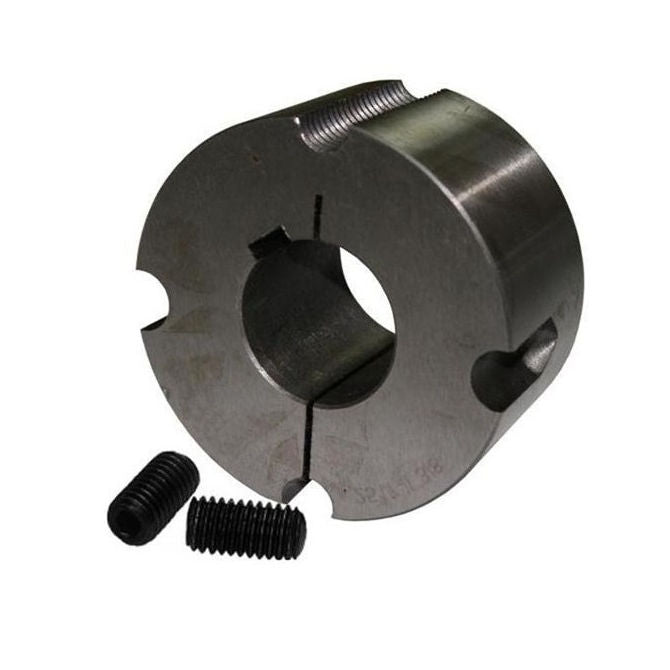

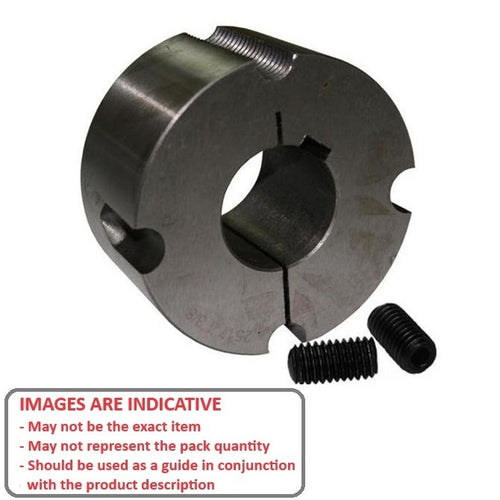

TLB-3525-0619 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

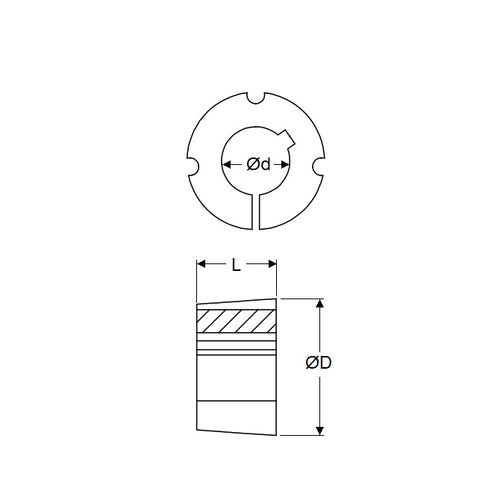

- Bore (d)
:
61.913
mm
(Equiv. 2.438 in.) - Large End Dia. (D)
127.0
mm
(Equiv. 5 in.) - Length (L)
63.5
mm
(Equiv. 2.5 in.) - Taperlock Series 3525
- No of Screws 3
- Screw Size 1/2x1-1/2 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 3525x2-7-16
- 57095K691
- 3525x2716
