CCI-06000H-C - Datasheet
MBA
Category Information

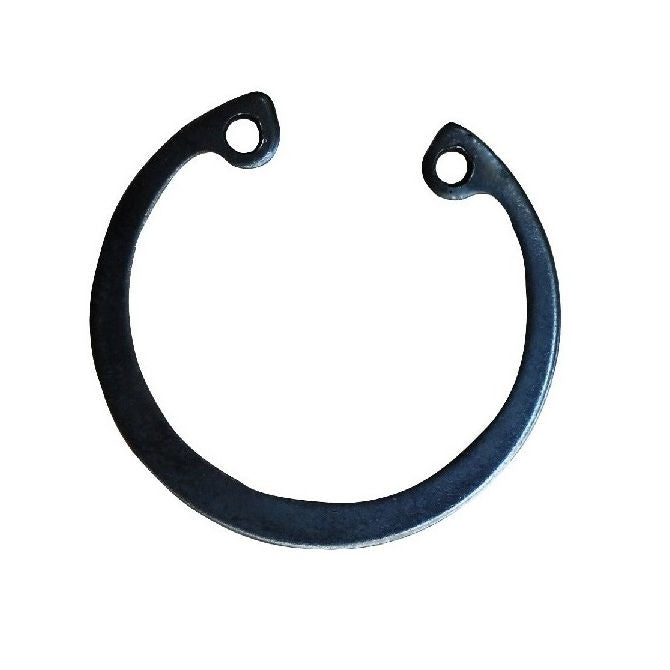

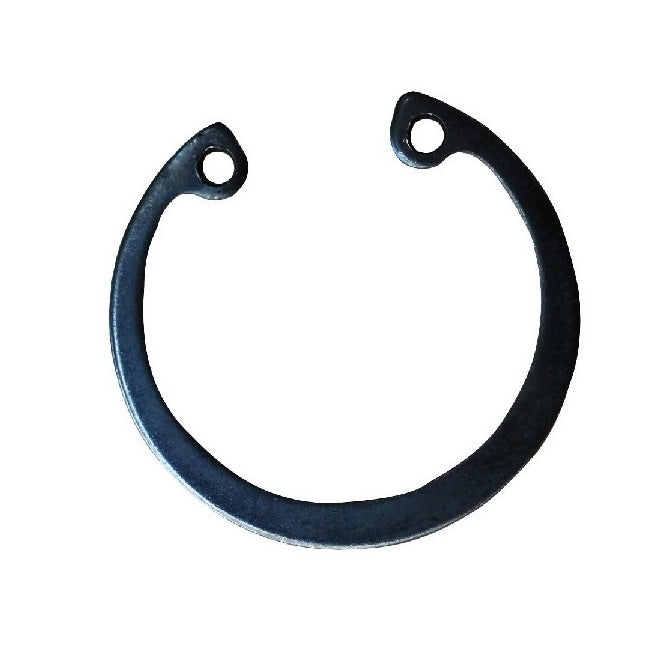

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
60.00
mm
(Equiv. 2.362 in.) - Clip Thickness (T)
3.00
mm
+ 0.30 / - 0.00
(Equiv. 0.118 in.) - Groove Dia. (Dg)
63.00
mm
+ 0.00 / - 0.08
(Equiv. 2.48 in.) - Approx. Loose Circlip OD (Dr) 64.20 mm + 1.10 / - 0.46
- Groove Width (W) 3.15 mm + 0.13 / - 0.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DHOR-060
- Seeger JS60X3
- 13600600
- 1360-0600
- DHOR060
- D1360-0600
- D13600600
